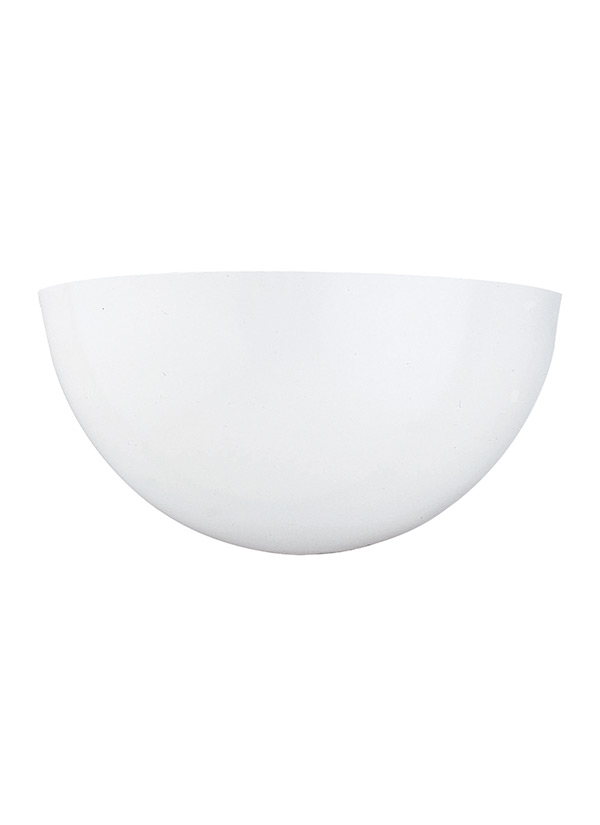

4148-15: One Light Wall / Bath Sconce



Collections: Neva (Primary)
ADA Wall Sconces


One light wall sconce with bright white glass and white finish is versatile in any room. Fixture is ADA Compliant.

One light wall sconce in white finish with bright white glass diffuser is versatile in any room.

G520036-34 replaced 5236-34 to make fixture ADA

Supplied with 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652414855

Finish:   White (15)

Dimensions:

Width: 11 1/2''
Height: 5 3/4''
Weight: 2.2 lbs.
Extends: 4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Glass - Smooth White
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-330)
French (F-007)
Trilingual (English, Spanish, and French) (414893S 4148993S)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Smooth White 1   3 7/8 11 9/16 5 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10      2 1/2  3 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4148-15 785652414855  13.25 7.75 6.75 0.401 2.41 0 Yes
Master Pack 4148-15 10785652414852  13.75 8.25 21.5 1.411 9.38 0 Yes
NJ Pallet   168    48 40 68.5 76.111 520 No
NV Pallet   168    48 40 71 78.889 520 No
