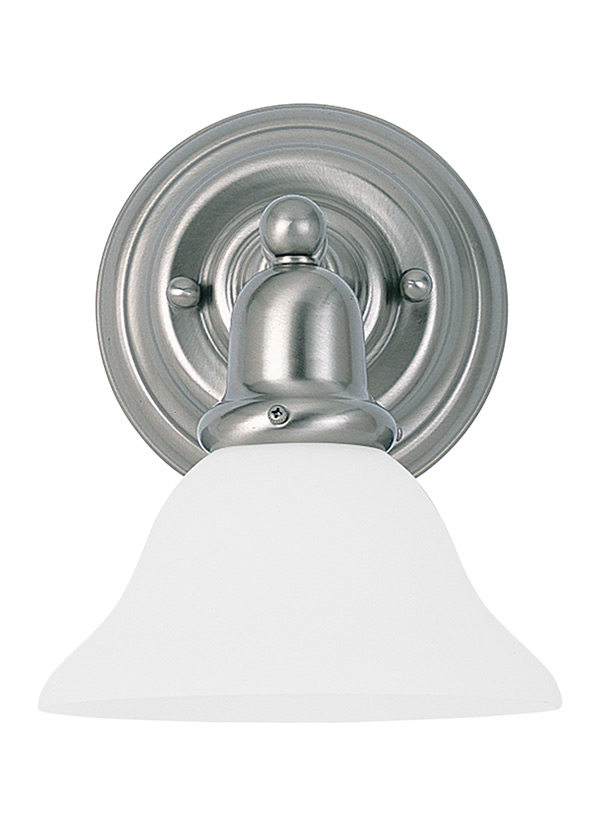

44060-962: One Light Wall / Bath


Collection:  Sussex

Single Light Decorative Bath Bracket Finished in Brushed Nickel with Satin White Glass Shade.

Yesterday's styling... today's finish - Brushed nickel finish, with satin white glass.

Featured in the decorative Sussex collection

1 A19 Medium 100 watt light bulb

Satin white glass shade

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652440601

Finish:   Brushed Nickel (962)
Dimensions:

Width: 7 1/2''
Height: 10 1/4''
Weight: 3 lbs.
Extends: 10 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-1328)
French (F-010)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin White 1       4 1/16 7 1/2 1 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     3  6 5/8  7  3 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 44060-962 1  785652440601  11.5 9.75 10.25 0.665 3.8 175 Yes
Master Pack   2  10785652440608  12 10.25 21.5 1.53 8.9 175 Yes
NJ Pallet   96    48 40 72 80 427.2 No
NV Pallet   96    48 40 72 80 427 No
