Job Name:	Job Type:
Comments:	Quantity:

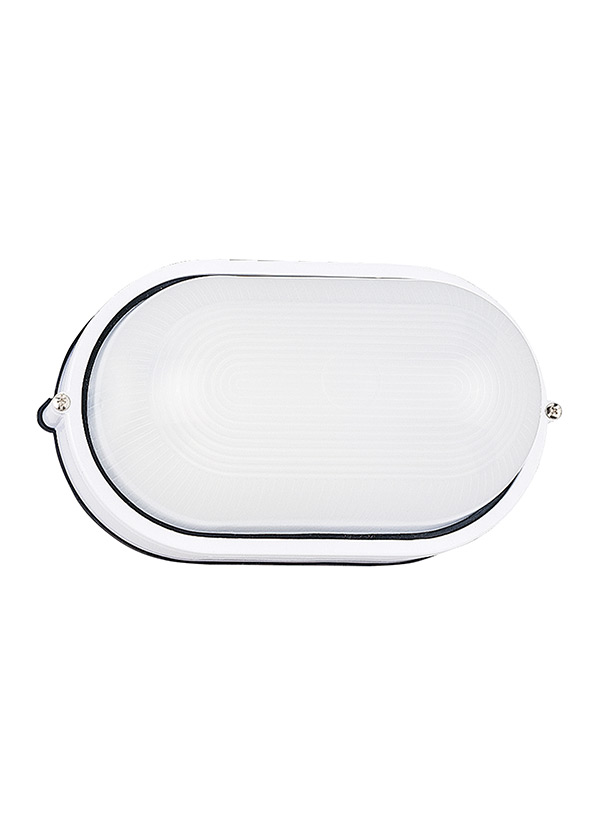

Product Number: 8325-15   8325-15 - Single-Light Piedmont Outdoor Wall Lantern     White Powdercoat Finished Exterior Light. Frosted Ribbed Glass. Fully Gasketed Glass and Backplate. Mount Horizontal or Vertical.     Single-Light Outdoor Wall Lantern with White Finish Aluminum and Frosted Ribbed Glass. Fully Gasketed Glass and Backplate. Mount horizontal or vertical.     UPC #:  785652832550   Product Type:   Outdoor Wall Lantern   Finish:   White (15)     Features: Ceiling/Wall Powder Coat Finish

Dimensions: Width: 6 1/2'' Height: 10 1/2'' Extends: 5'' Wire: 6 1/2'' Switch Type: N/A Mounting Proc.: Center Lock-Up Outlet Box: Mounted To Box       Bulbs:   1 - Medium A - Line 100w max 120v - Not included   Material List: 1 Body - Die Cast Aluminum - White 1 Gasket - Rubber - Black   Saftey Listing:   UL Listed for Wet Locations     Instruction Sheets French (F-008) English (HC-227)

Shade / Diffuser Part Material Finish Quantity Item Number Length Width Height Diameter Fitter Diameter Shade Top Length Shade Top Width Shade Top Diameter Diffuser Glass Frosted Ribbed 1

Backplate / Canopy Type Height/ Length Width Depth Diameter Outlet Box Up Outlet Box Down Back Plate           5 1/4

Shipping Information Package Type Quantity UPC Length Width Height Cube Weight UPS Ship Label Individual 1  785652832550  12 7 6.5 0.316 4.15 Yes A IP-1  Master Pack 3  10785652832557  21 7.75 13 1.224 13.75 Yes   NJ Pallet 198    48 40 74 82.222 907.5 No   NV Pallet 162    48 40 70.1 77.889 742 No
