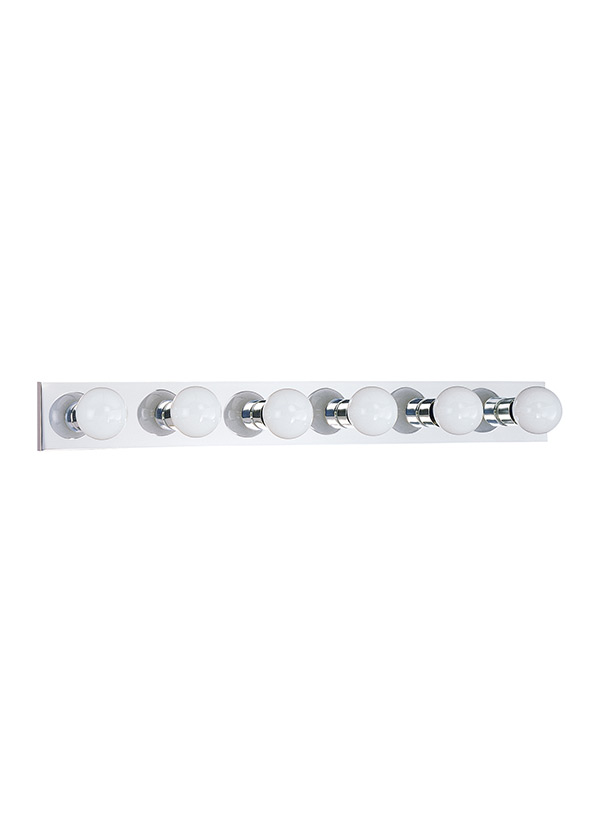

4739-05: Six Light Wall / Bath


Collection:  Center Stage

Six Light Chrome Bath Bracket that can be Mounted Horizontal or Vertical. The Bulbs are spaced at 6in apart.

Six-bulb bar light fixture with chrome finish. Sockets spaced on 6" centers.

Featured in the decorative Center Stage collection

6 G25 Medium 100 watt light bulbs

Fixture may be mounted horizontal or vertical

Meets Title 24 energy efficiency standards

Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

UPC #:785652473951

Finish:   Chrome (05)
Dimensions:

Width: 36''
Height: 4 1/4''
Weight: 3.4 lbs.
Extends: 2 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  6 - Medium G25 100w Max. 120v - Not included
Features:
  • Fixture may be mounted horizontal or vertical
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-107FB)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate         2 1/8  18
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4739-05 1  785652473951  38.25 4.75 2.5 0.263 3.1 0 Yes
Master Pack 4739-05 6  10785652473958  39 10.25 10 2.313 25.15 0 Yes
NJ Pallet   210    48 40 66 73.333 880.25 No
NV Pallet   210    48 40 66 73.333 880 No
