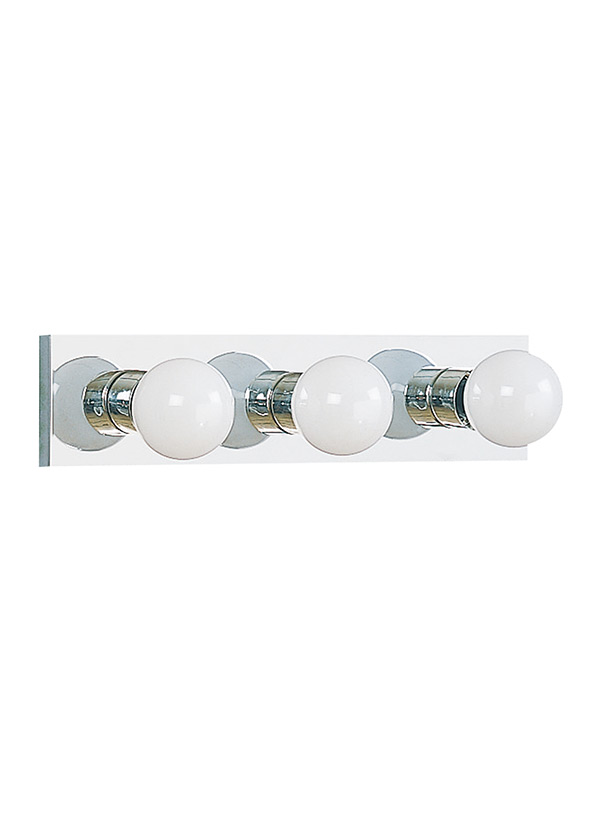

4737-05: Three Light Wall / Bath



Collection:  Center Stage


Three Light Chrome Bath Bracket that can be Mounted Horizontal or Vertical. The Bulbs are spaced at 6in apart.

Three-bulb bar light fixture with chrome finish. Sockets spaced on 6" centers.

UPC #:785652473753

Finish:   Chrome (05)

Dimensions:

Width: 18''
Height: 4 1/4''
Extends: 2 1/4''
Wire: 6 1/2''
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  3 - Medium G25 100w Max. 120v - Not included
Features:
  • Fixture may be mounted horizontal or vertical
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-107FB)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate         2 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4737-05 785652473753  20 5 3 0.174 2 85 Yes
Master Pack 4737-05 10785652473750  21 10.5 10 1.276 12.9 85 Yes
NJ Pallet   336    48 40 75 83.333 722.4 No
NV Pallet   336    48 40 78.75 87.5 711.2 No
