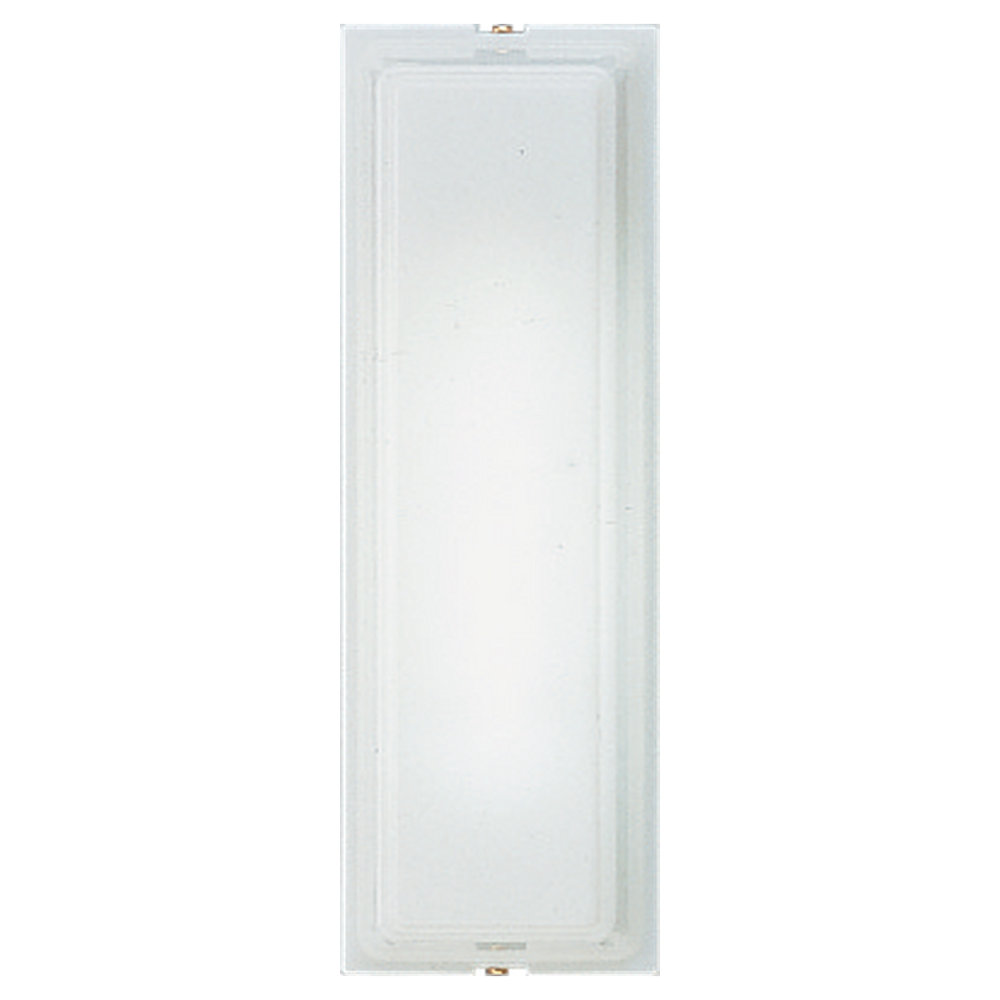

4918BLE-68: WALL / BATH



Collection:  Pillow Lens


Single Light Fluorescent with White Finish and White Acrylic Diffuser

One light fluorescent vertical wall bar with White Acrylic Diffuser. U.L. listed for damp location and meets federal Americans with Disabilities Act requirements. Energy Star compliant bulb available.

Ref. fix. 4918L-68

UPC #:785652918681

Finish:   White Plastic (68)

Dimensions:

Length: 13 1/4"
Width: 4 1/2''
Height: 3 1/2''
Extends: 3 1/2''
Wire: 6 1/2''
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  1 - Fluorescent G24q-1 Quad 4-Pin 13w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • Offers energy saving fluorescent lighting
  • Meets Title 24 energy efficiency standards
Material List:
1 Trim - Steel - White
Safety Listing:
  Safety Listed
Instruction Sheets:
English (HC-319)
English (A-779)
French (F-008)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Acrylic White Plastic 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 1 1/2  12 3/4  4 1/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97047 Frosted   Glass Lens   Quad 4-Pin GX24q-1/GX24q-3 13 13 120v 10000 860   2700 81
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4918BLE-68 785652918681  15.5 4.25 5 0.191 2.9 85 Yes
NJ Pallet   144    48 40 72 80 417.6 No
NV Pallet   144    48 40 72 80 417.6 No
