49180-02: WALL / BATH


Collection:  Centra

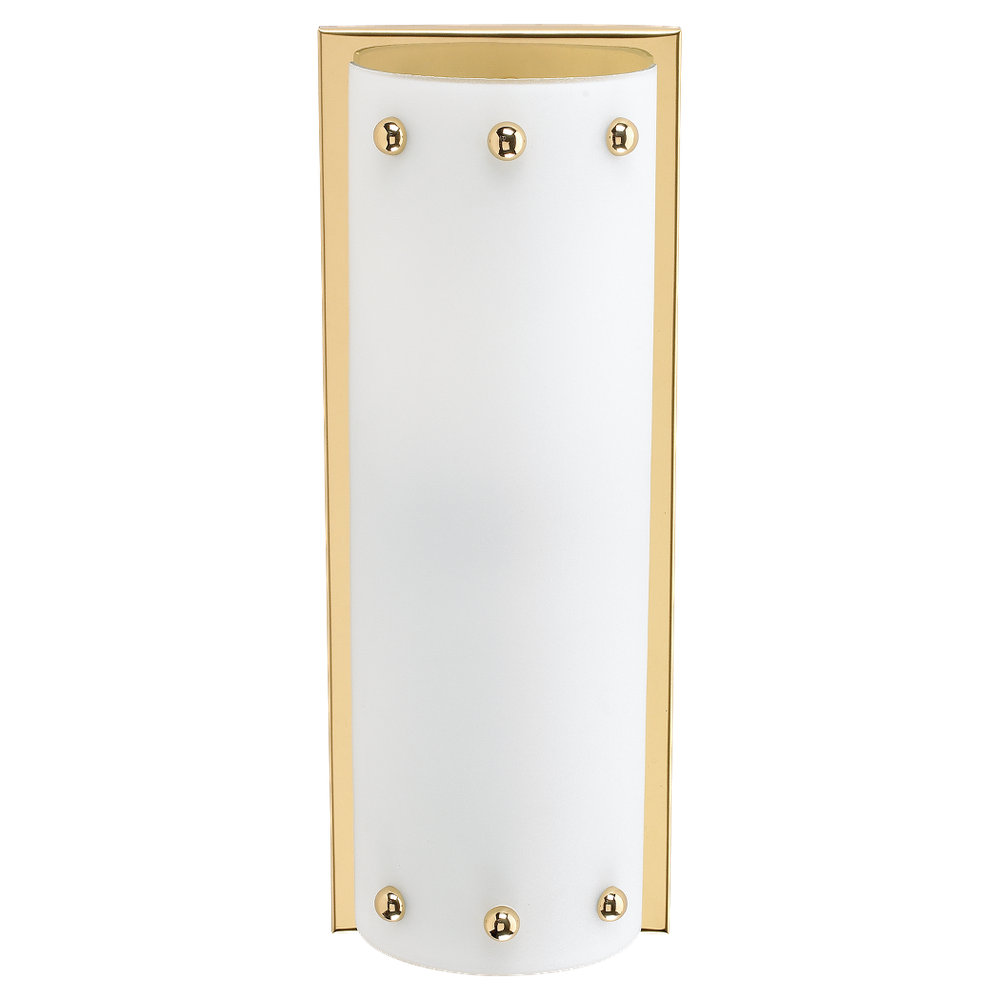

Attractive Two Light Wall Sconce with Polished Brass Finish and Satin White Glass. Can Be Mount Horizontal or Vertical. Adheres to Americans with Disabilities Act Requirements. Energy Star Compliant Bulbs Are Availalable.

UPC #:785652471803

Finish:   Polished Brass (02)
Dimensions:

Width: 6''
Height: 16''
Extends: 4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Fluorescent GX23-2 Tubular 13w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Offers energy saving fluorescent lighting
  • Fixture may be mounted horizontal or vertical
Material List:
1 Body - Steel - Polished Brass
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-242)
French (F-010)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin White 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 6  16  5/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
9747 Frosted   Glass Lens   Tubular GX23 13 13 120v 10000 900   2700 82
9757         13   120v 12500 880   2700 84
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 49180-02 1  785652471803  17.5 7.75 8.5 0.667 3 150 Yes
NJ Pallet   96    48 40 74.5 82.778 288 No
NV Pallet   96    48 40 74.5 82.778 288 No
