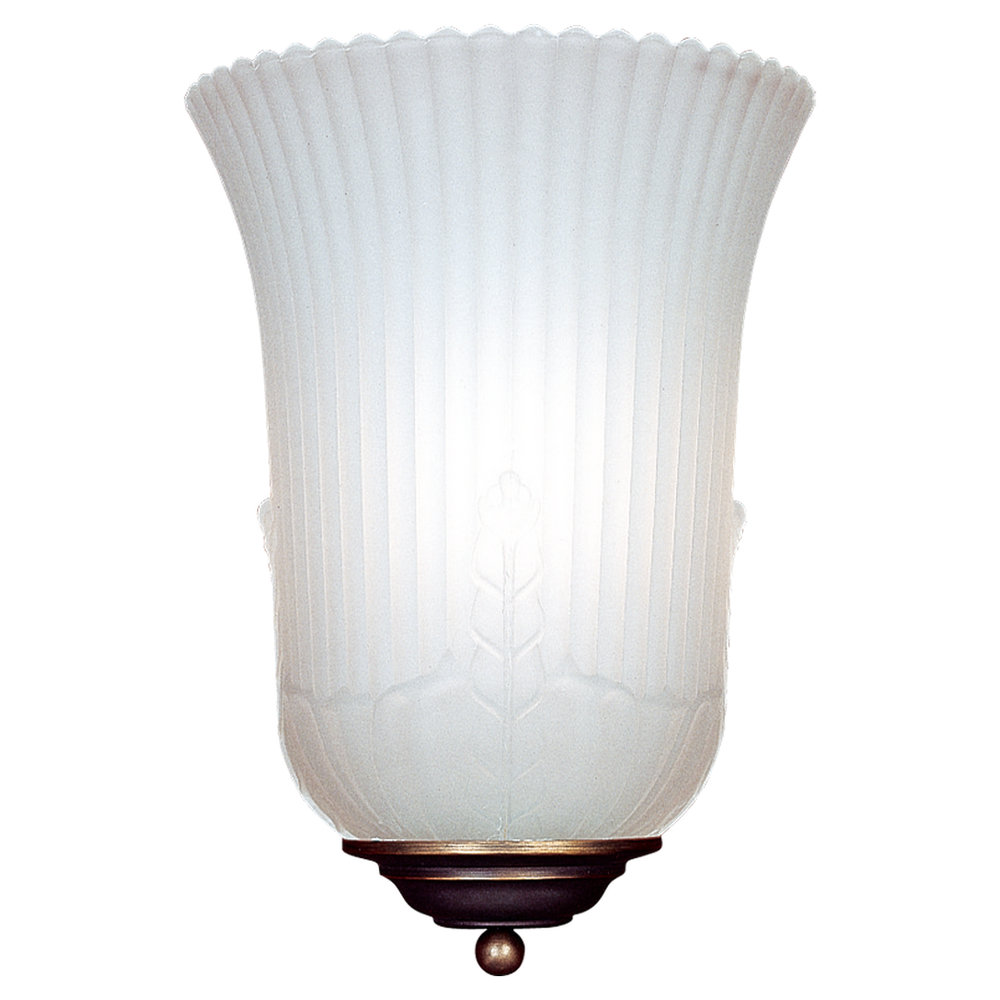

49175BLE-71: Two Light Wall / Bath

	Fluorescent Wall Sconce Two Light in Antique Bronze Finish with Etched Patterned Glass. Energy Star Compliant Bulb Included.
	Two-light fluorescent Wall/Bath Sconce with antique bronze solid brass finish and satin white glass provide elegant style. Fixture ADA Compliant and ENERGY STAR Qualified.
	Ref. Fixture: 49175E-71
	UPC #:785652917578
	Finish: Antique Bronze (71)

Dimensions:


Width:	8''
Height:	11 1/4''

Extends:

4''

Wire:

6 1/2''

Mounting Proc.:

Wall / Bath

Connection:

Mounted To Box

Bulbs:

2 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards

Material List:

1 Body - Brass - Antique Bronze

Safety Listing:

Safety Listed for Damp Locations
Safety Listed for Damp Locations

Instruction Sheets:

English (HC-118)
English (A-779)
French (F-006)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

White

9 5/8

1 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7	4 1/4			6	5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97102	Frosted Glass Lens		Self Ballasted CFL	GU24	13	13	120v	10000	900	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	49175BLE-71	1	785652917578	11.75	10.38	6	0.423	5	93	Yes
NJ Pallet		192		48	40	72	80	946.2		No
NV Pallet		192		48	40	72	80	946.2		No
