49119-782: One Light Wall / Bath



Collections: Nearu (Primary)
ADA Wall Sconces

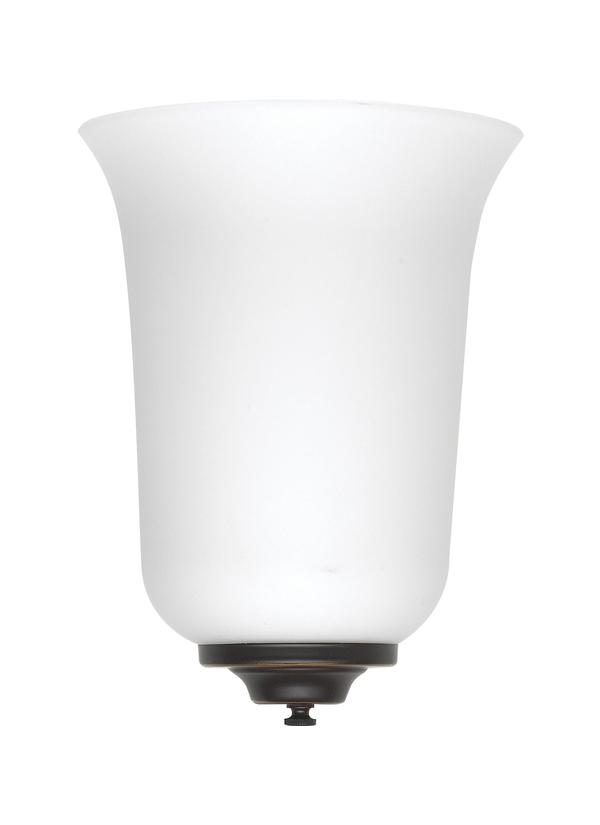

One Light Wall Sconce in Heirloom Bronze Finish with Opal Cased Etched Glass Shade. Meets Americans with Disabilities Requirements.

Featured in the decorative ADA Wall Sconces collection

1 A19 Medium 100 watt light bulb

opal cased Etched glass diffuser

Meets American with Disabilities Act standard extension requirements

Easily converts to LED with optional replacement lamps

UPC #:785652024887

Finish:   Heirloom Bronze (782)

Dimensions:

Width: 8''
Height: 10 1/2''
Weight: 2.4 lbs.
Extends: 4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-118)
French (F-006)
Trilingual (English, Spanish, and French) (49119)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Glass Opal Cased Etched 1     4 8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate         5 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 49119-782 785652024887  11.5 10.5 7.2 0.503 2.6 0 Yes
Master Pack 49119-782 10785652024884
NJ Pallet   160    48 40 77 85.556 448 No
NV Pallet   126    48 40 77 85.556 352 No
