4936-02: WALL / BATH

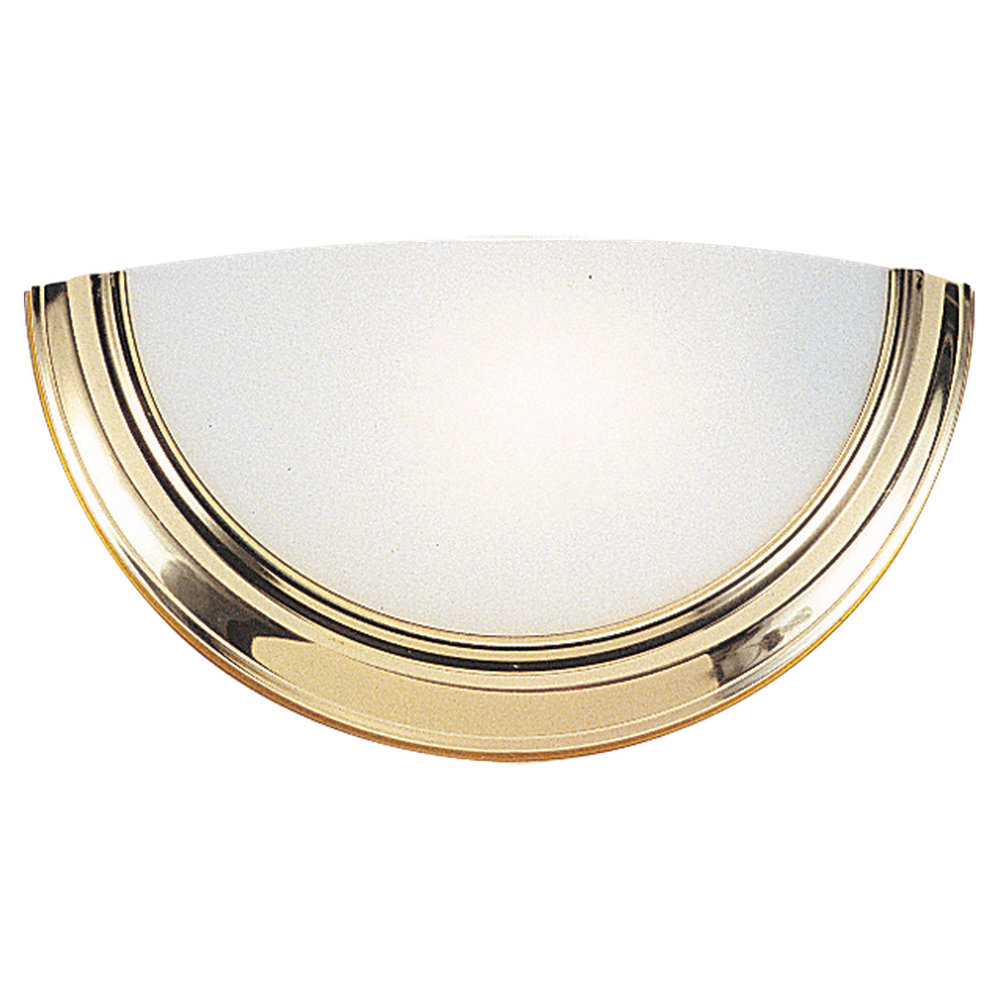

Single Light Fluorescent Wall Sconce with Polished Brass Trim and White Glass.

Single Fluorescent Light Wall Sconce with Polished Brass Trim and White Glass.

UPC #:785652493621

Finish:   Polished Brass (02)
Dimensions:

Width: 15''
Height: 7 1/2''
Extends: 4''
Wire: 6 1/2''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Fluorescent GX23 Tubular 13w Max. 120v - Not included
Features:
  • Offers energy saving fluorescent lighting
Material List:
1 Body - Steel - Polished Brass
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-516)
French (F-007)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Smooth White 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate         3
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
9747 Frosted   Glass Lens   Tubular GX23 13 13 120v 10000 900   2700 82
9757         13   120v 12500 880   2700 84
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4936-02 1  785652493621  17 9.5 8.5     Yes
NJ Pallet   80    48 40 71 78.889 384 No
NV Pallet   80    48 40 71 78.889 384 No
