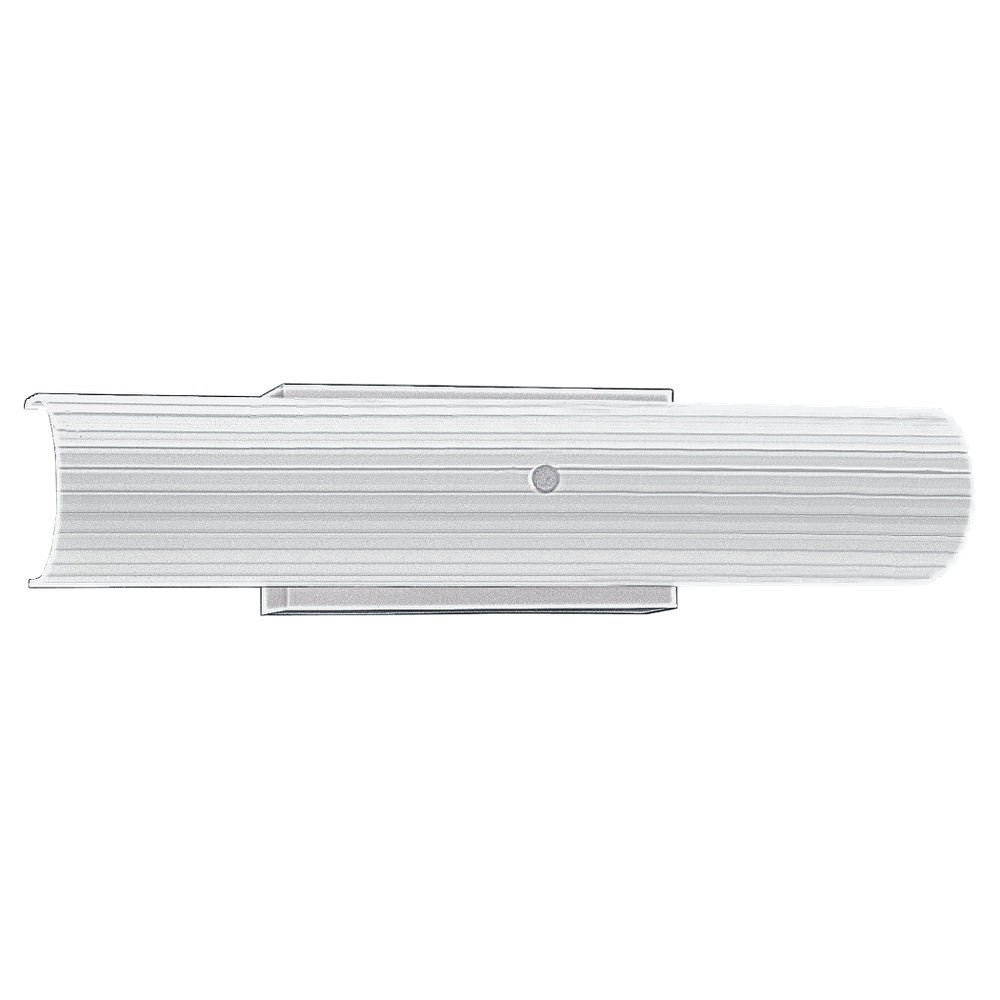

49258BLE-15: WALL / BATH

	Two Light Fluorescent Wall with White Finish and White Ribbed Acrylic Diffuser. Energy Star Compliant Bulb Included.
	Replaced fix. 4958BLE-15
	UPC #:785652492518
	Finish: White (15)

Dimensions:

Wire:

6 1/2''

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulbs:

2 - Fluorescent G24q-1 Quad 4-Pin 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards

Material List:

1 Body - Steel - White

Safety Listing:

Safety Listed for Damp Locations
Safety Listed for Damp Locations

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Acrylic

White Ribbed Acrylic

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97047	Frosted Glass Lens		Quad 4-Pin	GX24q-1/GX24q-3	13	13	120v	10000	860	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	49258BLE-15	1	785652492518	20.75	9	5.75	0.621	2.8	175	Yes
NJ Pallet		80		48	40	72	80	224		No
NV Pallet		80		48	40	72	80	224		No
