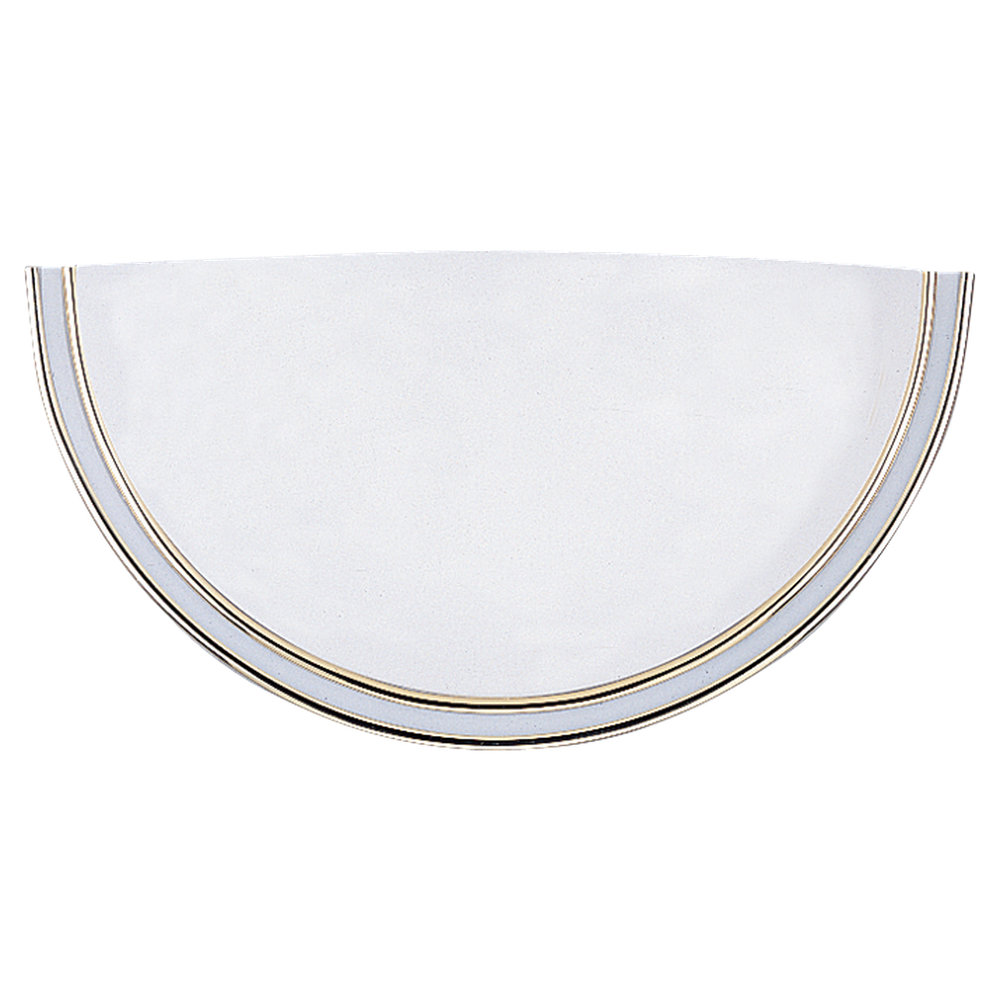

4924BLE-02: WALL / BATH

	Two Light Fluorescent Wall Sconce with White Acrylic Diffuser and Polished Brass Trim. Energy Star Compliant Bulb Included.
	Wall or bath fluorescent fixture finished in polished brass with white acrylic diffuser. An ENERGY STAR Qualified fixture.
	Ref. fix. 4924-02E
	UPC #:785652924026
	Finish: Polished Brass (02)

Dimensions:


Width:	16 1/2''
Height:	8 1/2''

Extends:

4''

Wire:

6 1/2''

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Bulbs:

2 - Fluorescent G24q-1 Quad 4-Pin 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards

Material List:

1 Trim - Steel - Polished Brass

Safety Listing:

Safety Listed for Damp Locations
Safety Listed for Damp Locations

Instruction Sheets:

English (HC-154)
English (A-779)
French (F-007)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Acrylic

White Plastic

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate					2 3/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97047	Frosted Glass Lens		Quad 4-Pin	GX24q-1/GX24q-3	13	13	120v	10000	860	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4924BLE-02	1	785652924026	18	18	7.5	1.406	4.2	250	Yes
NJ Pallet		44		48	40	69	76.667	185		No
NV Pallet		44		48	40	69	76.667	185		No
