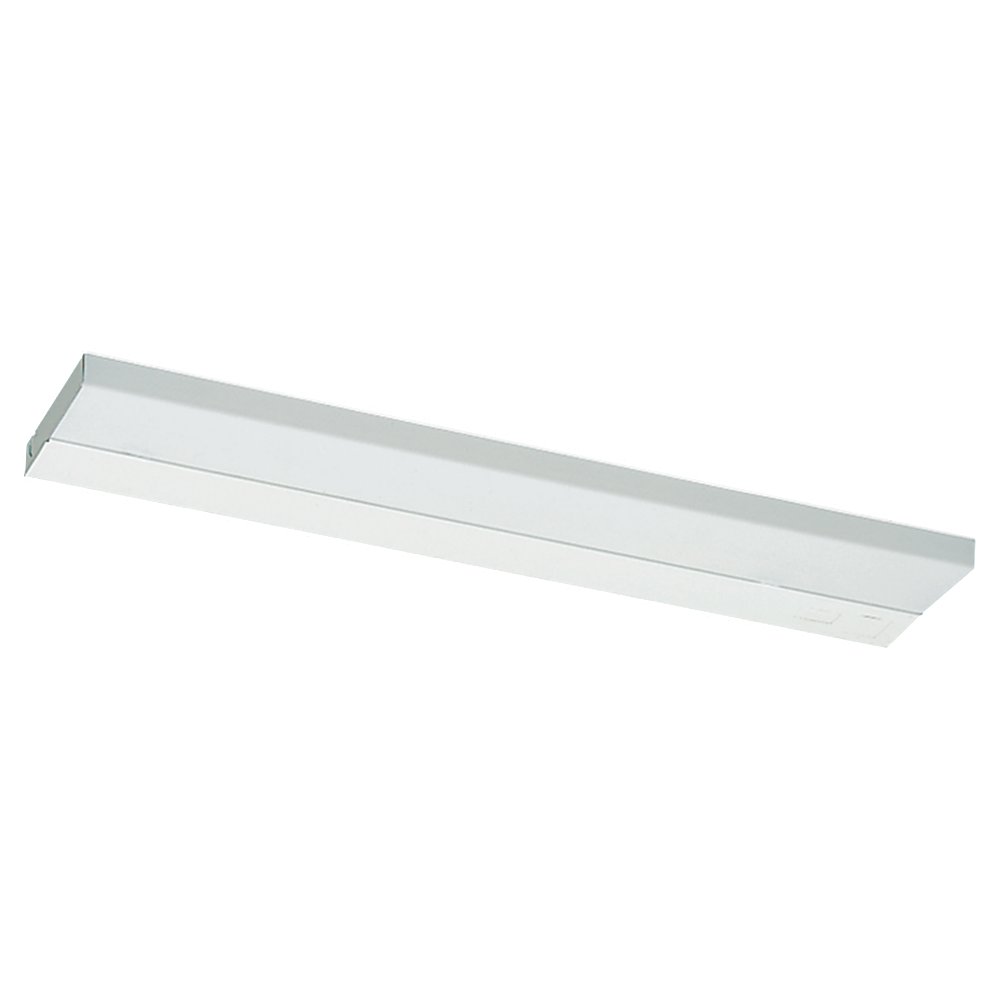

4977BLE-15: 24.25" Self-Contained Fluorescent



Collections: Self-Contained Fluorescent Lighting (Primary)
Undercabinet Fluorescent


Ambiance Self-Contained Fluorescent Lighting is designed with quality and performance in mind. The low profile design is optimal for confined areas. High performance electronic ballasts and T5 lamps provide instant-on, flicker-free light. Contains multiple knockouts for ease of installation and linking units together.

Knockout for optional accessories 9027-15 on/off switch and 9028-15 GCO

Featured in the decorative Self-Contained Fluorescent Lighting collection

2 Tri-Phosphor T-5 Mini Bi-Pin 8 watt light bulbs

Fixture is supplied with 1 light bulbs

white acrylic diffuser

Offers energy saving fluorescent lighting

UPC #:785652049774

Finish:   White (15)

Dimensions:

Length: 24 1/2"
Width: 5''
Height: 1''
Weight: 2.8 lbs.
Mounting Proc.: Key Slots
Bulb Type: Tri-Phosphor T-5
Bulb Base: Mini Bi-Pin
Volts: 120
Watts: 16
Watts Consumed: 16
Watts Rated: 16
Hours Rated: 10000
Lumens: 780
Bulb Temp: 3000 °K
CRI: 82
Bulbs:
  2 - Fluorescent Mini Bi-Pin Tri-Phosphor T-5 8w Max. 120v - included
Features:
  • Offers energy saving fluorescent lighting
  • Knock out for on/off switch and ground convenience outlet
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-282)
French (F-016)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Acrylic White 1 G620145
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4977BLE-15 785652049774  24.75 5.5 1.75 0.138 3.7 0 Yes
Master Pack   10785652049771  25.5 12 6.25 1.107 23.75 0 Yes
NJ Pallet   360    48 40 62.5 69.444 1425 No
NV Pallet   360    48 40 63.58 70.644 1281 No
