Two-Light Fluorescent Wall/Bath

Alternate Images (click below for detail view)
Catalog View: 2012 Full Line Catalog
ADA Wall Sconces Collection

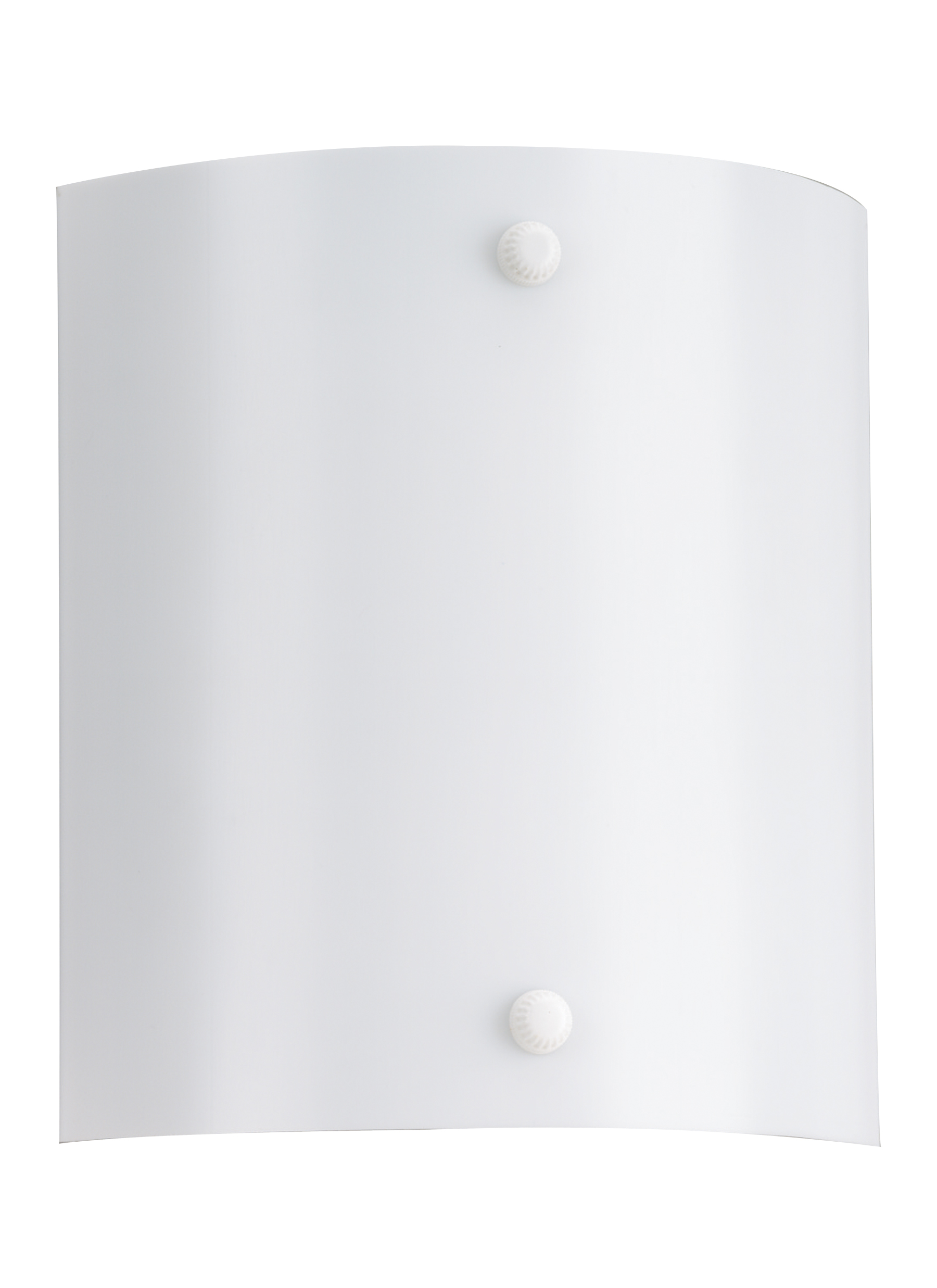

Two Light Fluorescent Wall Sconce with White Finish and White Acrylic Diffuser. Energy Star Compliant Bulb Included.
Two light compact fluorescent light with white acrylic diffuser offers shatter resistancy. Meets Federal Americans with Disabilities Act requirements. An ENERGY STAR Qualified fluorescent fixture.
Specifications
Product #: 4974BLE-15
MSRP: $194.40
Finish: White
Diffuser:  Acrylic - White
Dimensions:  W: 10 1/2'' H: 12''
Lamping:  2 Fluorescent G24q-1 Quad 4-Pin 13w Max.
Bulbs included.
Listings:  UL Listed for Damp Locations
cUL Listed for Damp Locations
Warranty:  3-Year Warranty
Wish List   Compare
Details
Extends: 4''
Supplied with 6.5'' of wire
Backplate: Height: 10 3/16''  Width: 6''  Depth: 1/2''
Center of outlet box up: 5 3/4''
Center of outlet box down: 5 3/4''
Ballast: 120v Electronic NPF
Meets American with with Disabilities Act standard extension requirements
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards

Detailed Specs:
HTML Specification Sheet
PDF Specification Sheet
How to Install:
English
English
French

HI-RES Downloads
.jpg
.png

Need Parts?

Bulb:  97047
Diffuser:  640171-15
ADA Wall Sconces Collection:
Our ADA wall sconce designs with fluorescent lamping options meet ADA compliance standards for low-profile extension off the wall, while providing you energy savings. Perfect for commercial, multi-family residential and various other situations were accessibility is a concern.
4938BLE-15 4936BLE-962 4135-962 4148-15 49170BLE-710
49170BLE-962 4974BLE-15 49119BLE-962 49119BLE-782 4919BLE-02
4972BLE-02
