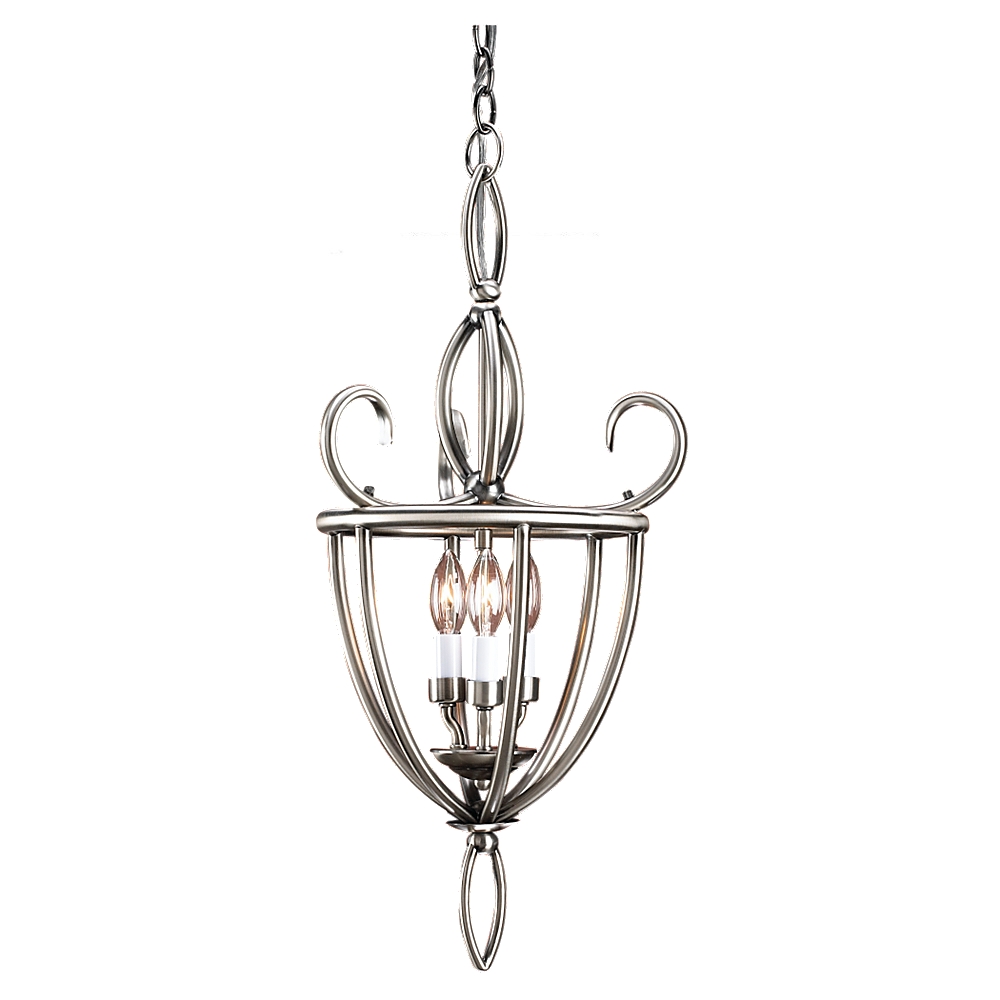

51074-161: Three Light Hall / Foyer

Three Light Hall/Foyer in Silver Antiquity Finish.

Three Light Hall Foyer in Silver Antiuity Finish

Pulte

UPC #:785652741616

Finish:   Silver Antiquity (161)
Dimensions:

Diameter: 12 1/2''
Height: 25 3/4''
Overall Height: 147 1/2''
Wire: 144'' (color/Clear)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  3 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Silver Antiquity
1 Candle Cover - Polycarbonate - White
1 Chain - Steel - Silver Antiquity
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     1 1/8  5 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 51074-161 1  785652741616  13.25 12.25 11 1.033 10.6 93 Yes
NJ Pallet   72    48 40 72 80 371 No
NV Pallet   72    48 40 72 80 371 No
