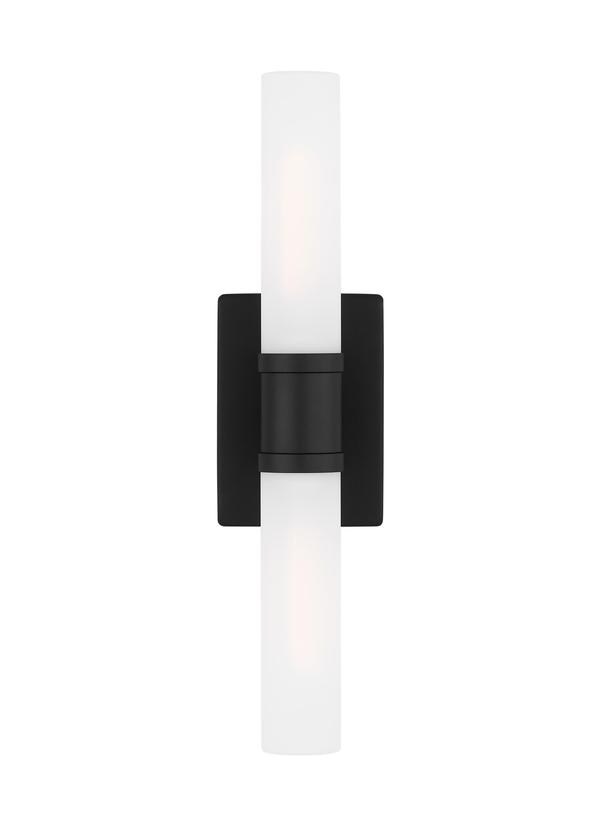

4565002-112E: Medium Two Light Wall / Bath


Collection:  Keaton

UPC #:785652162664

Finish:   Midnight Black (112)
Dimensions:

Length: 5"
Width: 20''
Weight: 2.86 lbs.
Extends: 3 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: E-26 Medium
Volts: 120
Watts: 4
Watts Consumed: 4
Watts Rated: 4
Hours Rated: 15000
Lumens: 350
Bulb Temp: 3000 °K
CRI: 90
Beam Spread: 360
Bulbs:
  2 - LED Medium T10 4w Max. 120v - included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted horizontal or vertical
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (KEATON_WALL)
English (4465002 4565002 4665002)
Trilingual (English, Spanish, and French) (4465002 4565002 4665002)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 2       9 2 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7  5  3/4    10  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4565002-112E 1  785652162664  11.2 8.2 5.7 0.303 3.5 0 Yes
Master Pack 4565002-112E 0  10785652162661
