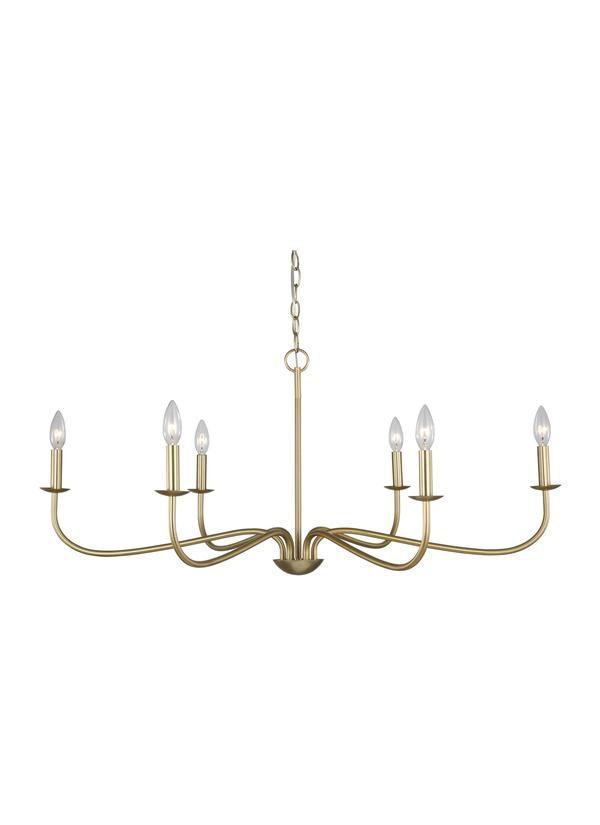

GLC1196SBE: Six Light Chandelier


Collection:  Abells

UPC #:785652150944

Finish:   Satin Brass (SB)
Dimensions:

Diameter: 40 1/8''
Width: 40 1/8''
Height: 18''
Overall Height: 91 1/8''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulb Type: B10 Torpedo
Bulb Base: E12 Candelabra
Volts: 120
Watts: 4
Watts Consumed: 4
Watts Rated: 4
Hours Rated: 15000
Lumens: 350
Bulb Temp: 2700 °K
CRI: 90
Bulbs:
  6 - LED Candelabra B Torpedo 5w Max. 120v - included
Features:
  • This product may be mounted on a sloped ceiling
  • Clear bulb(s) recommended for this fixture
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Satin Brass
1 Chain - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual GLC1196SBE 1  785652150944
