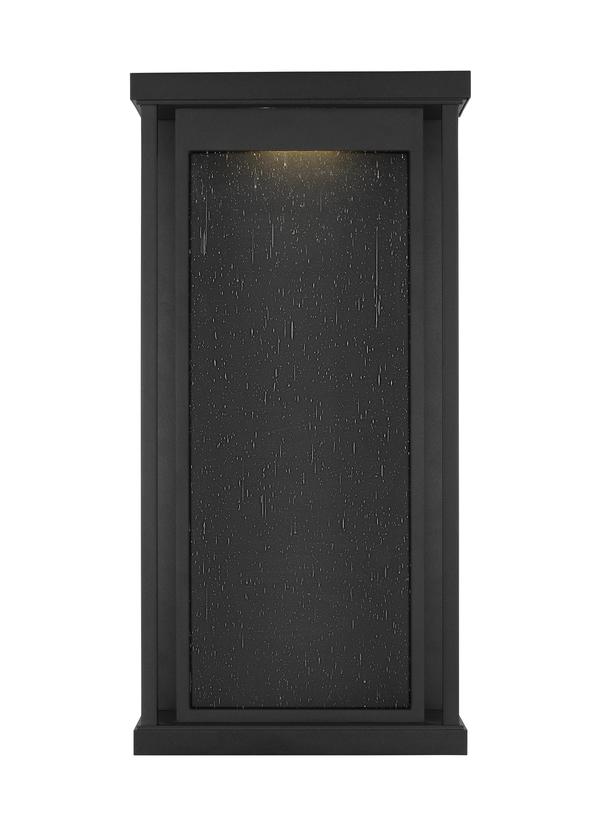

GLO1341TXB: Large Lantern


Collection:  Faywood

UPC #:785652147104

Finish:   Textured Black (TXB)
Dimensions:

Width: 10''
Height: 20''
Extends: 4 3/4''
Wire: 8'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 12
Watts Consumed: 12
Watts Rated: 12
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Array 12w 120v - included
Features:
  • This product is dimmable.
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Textured Black
Safety Listing:
  Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Seeded 1     6 3/4 18 1/8
Panel Glass Clear Seeded 2     2 1/2 18 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 18 1/4  9 3/8  3/4    10
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual GLO1341TXB 1  785652147104  12.4 7.29 22.84 1.195 9.65 0 Yes
Master Pack GLO1341TXB 0  10785652147101
