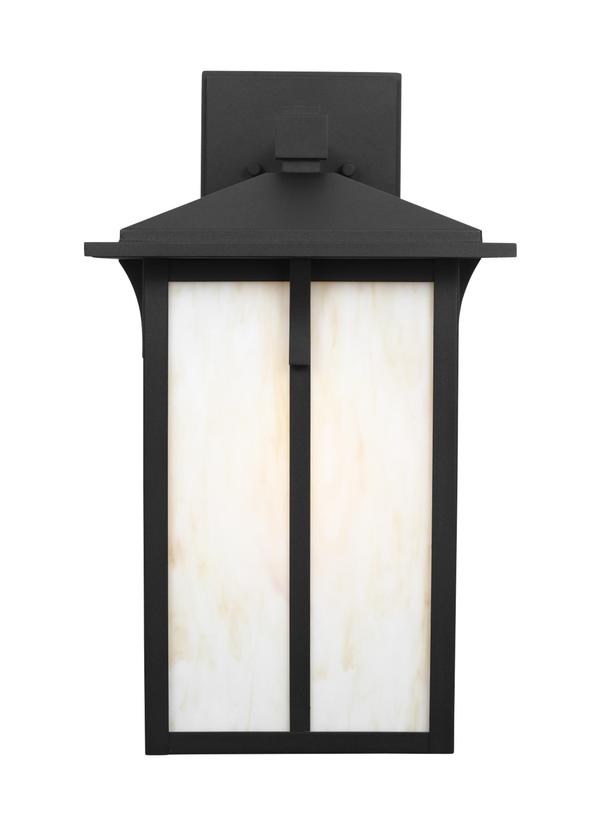

8752701CG-12: Large One Light Outdoor Wall Lantern


Collection:  Tomek

UPC #:785652148804

Finish:   Black (12)
Dimensions:

Width: 10 1/2''
Height: 18''
Weight: 7.47 lbs.
Extends: 12 3/8''
Wire: 8'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Champagne 4     7 3/8 12 7/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  6  1    3
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8752701CG-12 1  785652148804  14.56 12.99 20.66 2.261 12.5 0 Yes
Master Pack 8752701CG-12 0  10785652148801
