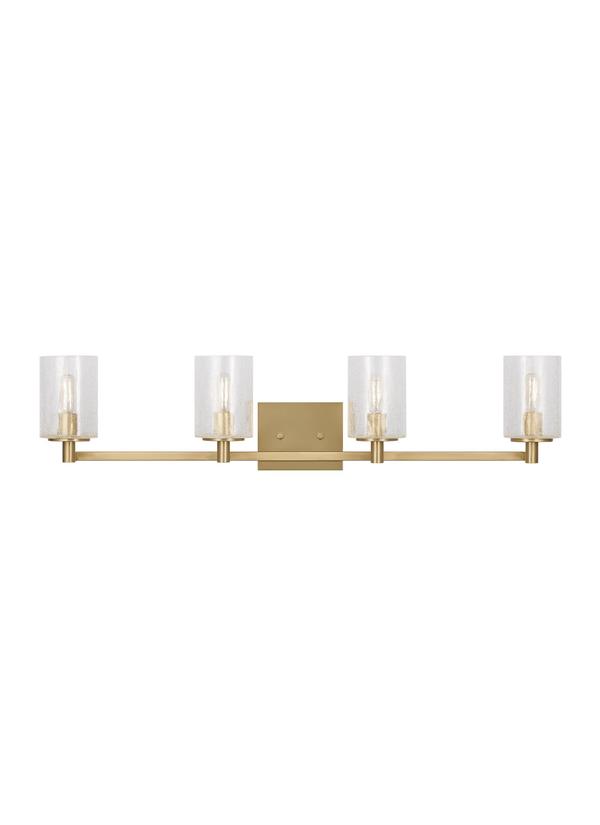

GLV1034EN/SB: Four Light Wall / Bath


Collection:  Parker

UPC #:785652144363

Finish:   Satin Brass (SB)
Dimensions:

Width: 35''
Height: 7 3/4''
Extends: 6 3/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  4 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • Clear bulb(s) recommended for this fixture
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Crackle 4       5 3/8 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  5 7/8  3/4    5 3/8  2 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual GLV1034EN/SB 1  785652144363  36 8.5 9.5 1.682 10.4 0 Yes
Master Pack GLV1034EN/SB 0  10785652144360
