5233-782: Six Light Hall / Foyer


Collection:  Bretton

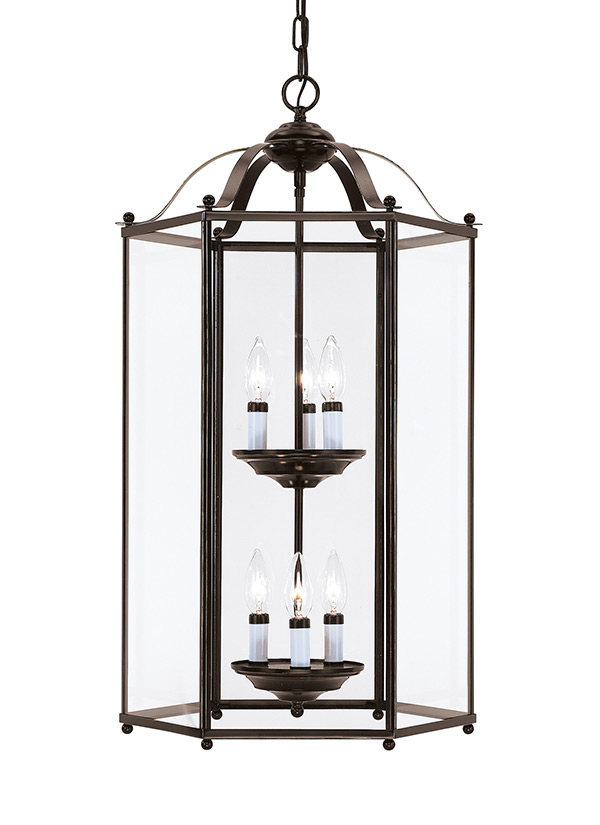

Heirloom Bronze trimmed foyer pendant with six lights displayed on two tiers. Long clear glass panels all around reveal radiance.

Heirloom Bronze Trimmed Foyer Pendant with Six Lights Displayed on Two Tiers. Long Clear Glass Panels All Around Reveal Radiance.

Use 9100-782 for Replacement Chain (9-18-03).

Featured in the decorative Bretton collection

6 B Torpedo Candelabra 60 watt light bulbs

Clear glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652523373

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 16 3/4''
Height: 29 3/4''
Weight: 19 lbs.
Overall Height: 119 3/4''
Wire: 144'' (color/Brown)
Chain: 88''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  6 - Candelabra B Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
English (HC-192)
French (F-004)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear 6     7 11/16 22 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 5/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5233-782 1  785652523373  16.5 18.5 27 4.77 25 175 Yes
NJ Pallet   15    48 40 72 80 375 No
NV Pallet   15    48 40 72 80 375 No
