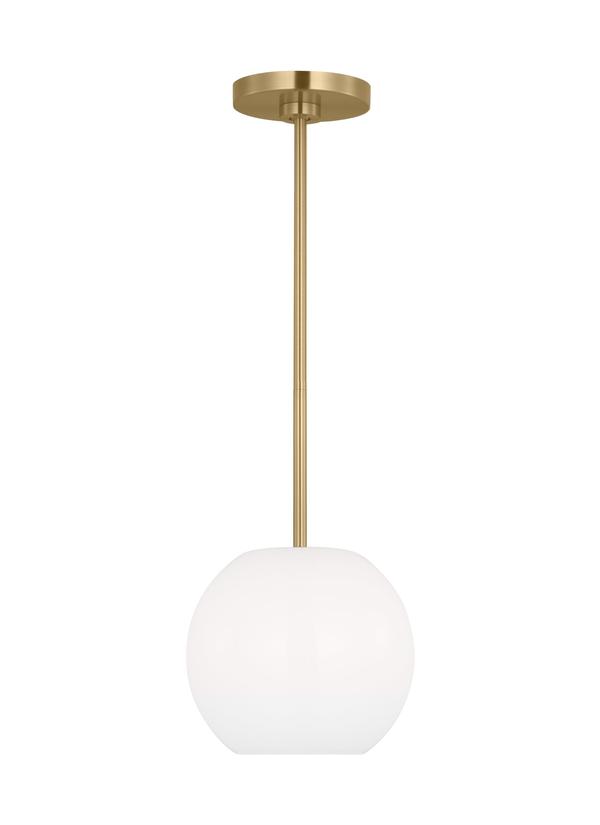

GLP1011EN3/SB: Mini Pendant

	Collection: Rory
	UPC #:785652142857
	Finish: Satin Brass (SB)

Dimensions:


Diameter:	8 3/8''
Width:	8 3/8''
Height:	7 3/16''

Overall Height:

50 1/2''

Wire:

72'' (color/Clear Silver)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED E26 Medium A19 9w Max. 120v - included

Features:

This product may be mounted on a sloped ceiling
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Satin Brass

3 12" Stem - Steel - Satin Brass

1 6" Stem - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear outside / painted white insde

7 3/16

8 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	GLP1011EN3/SB	1	785652142857	13	10.5	11	0.869	5.7	0	Yes
Master Pack	GLP1011EN3/SB	0	10785652142854
