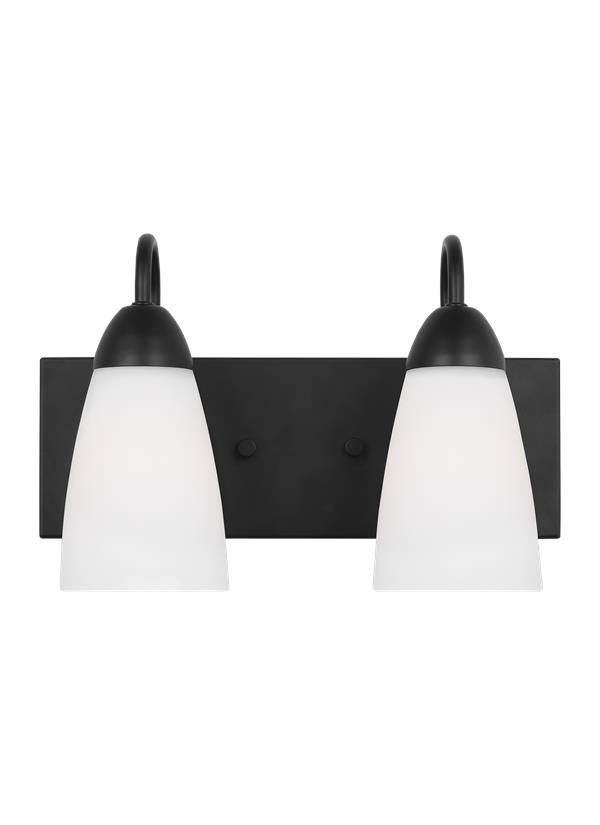

4420202EN3-112: Two Light Wall / Bath

	Collection: Seville
	UPC #:785652143199
	Finish: Midnight Black (112)

Dimensions:


Width:	21 1/2''
Height:	8 1/2''

Extends:

6 5/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED E26 Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Midnight Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (4120201 4420202 4420203 4420204 4420205)
Trilingual (English, Spanish, and French) (4120201 442020_)
Trilingual (English, Spanish, and French) (4120201 4420202 4420203 4420204 4420205)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

5 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	4 3/4	13 1/2	5/8		5 1/8	3 3/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4420202EN3-112	1	785652143199	16	8	10.2	0.756	5.1	0	Yes
Master Pack	4420202EN3-112	4	10785652143196	17	22	16.5	3.571	22.7	0	Yes
