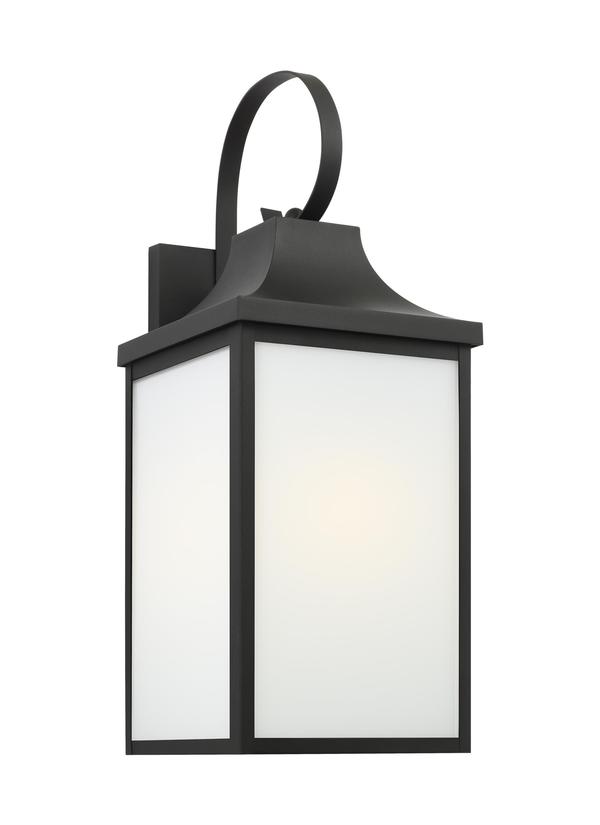

GLO1031TXB: One Light Large Lantern


Collection:  Saybrook

Featured in the decorative Saybrook collection

1 A19 Medium 75 watt light bulb

Full sets of clear and white glass panels included with each fixture

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652140150

Finish:   Textured Black (TXB)
Dimensions:

Width: 8 1/2''
Height: 21 7/8''
Weight: 11.2 lbs.
Extends: 9 7/8''
Wire: 8'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Textured Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (GLO1031 GLO1021 GLO1011)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear 4     7 1/2 12 1/4
Panel Glass Smooth White 4     7 1/2 12 1/4
Panel Aluminum White 4     7 1/2 12 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7  5  3/4    8 3/8  13 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual GLO1031TXB 1  785652140150  25.2 14 12 2.45 14.9 0 Yes
Master Pack GLO1031TXB 0  10785652140157
