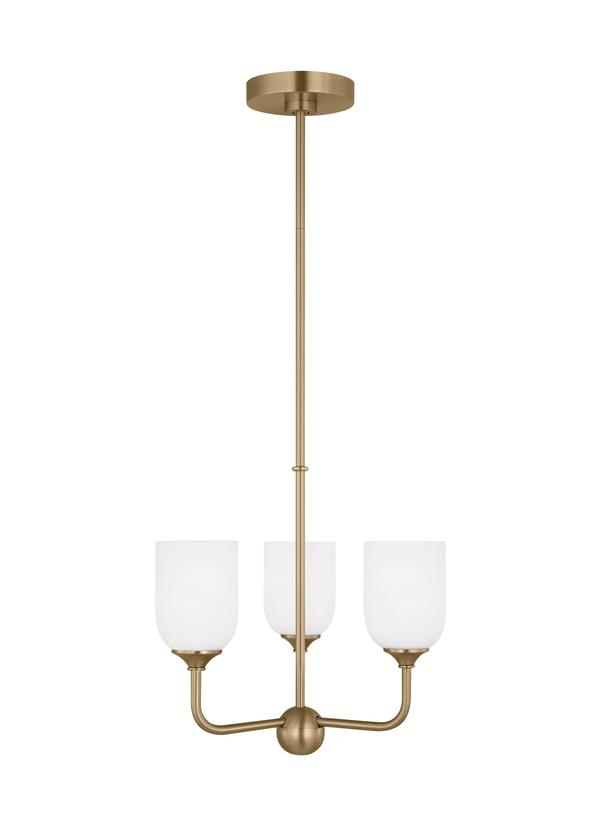

GLC1073SB: Small Chandelier


Collection:  Emile

UPC #:785652140235

Finish:   Satin Brass (SB)
Dimensions:

Diameter: 16''
Width: 16''
Height: 17''
Overall Height: 60 3/8''
Wire: 72'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • This product may be mounted on a sloped ceiling
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (920GLC1073)
Trilingual (English, Spanish, and French) (GLC1073 GLC1085)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 3       5 1/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual GLC1073SB 1  785652140235  16.5 12 9.5 1.089 6.8 0 Yes
Master Pack GLC1073SB 0  10785652140232
