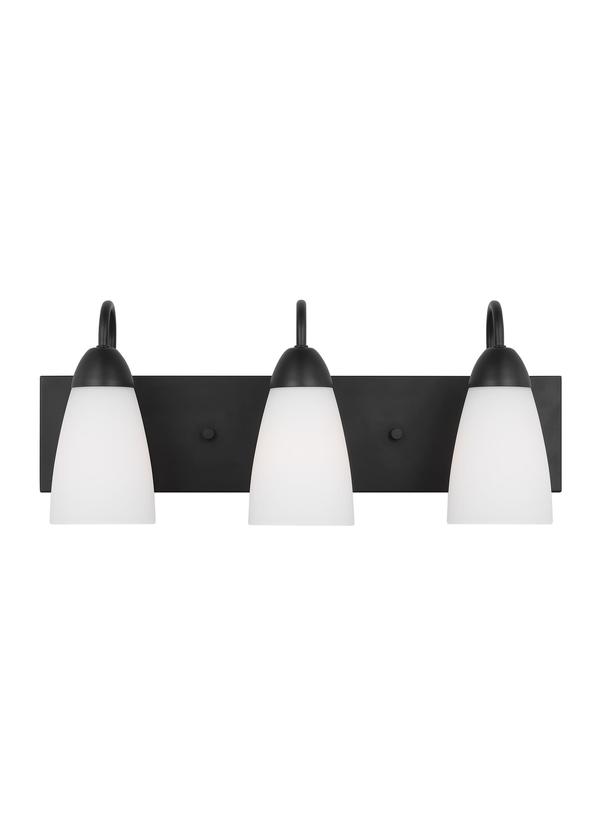

4420203-112: Three Light Wall / Bath


Collection:  Seville

UPC #:785652141522

Finish:   Midnight Black (112)
Dimensions:

Width: 21''
Height: 8 1/2''
Weight: 5.76 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - E26 Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4120201 4420202 4420203 4420204 4420205)
Trilingual (English, Spanish, and French) (4120201 442020_)
Trilingual (English, Spanish, and French) (4120201 4420202 4420203 4420204 4420205)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560283-303     5 3/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  21  5/8    5 1/8  3 3/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4420203-112 1  785652141522  24 8 10.5 1.167 8.4 0 Yes
Master Pack 4420203-112 0  10785652141529
