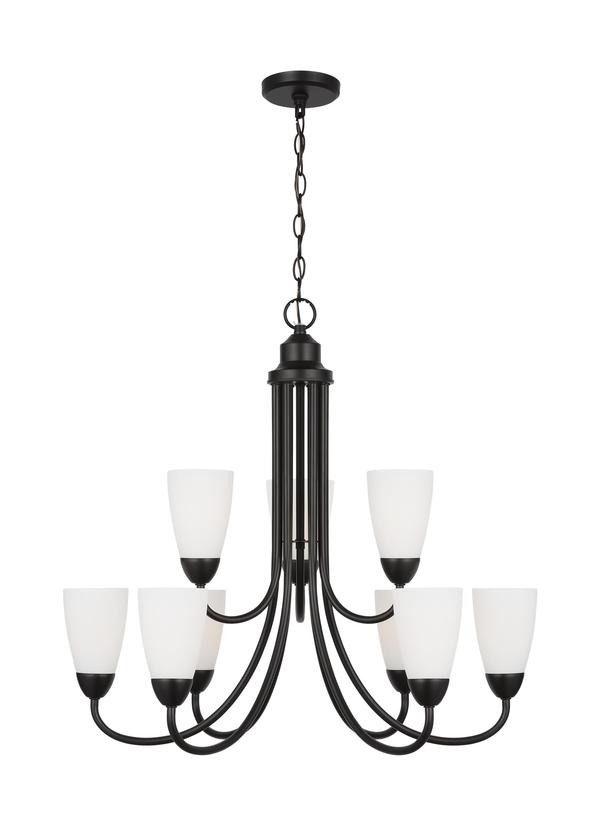

3120209-112: Nine Light Chandelier


Collection:  Seville

UPC #:785652141485

Finish:   Midnight Black (112)
Dimensions:

Diameter: 28 7/8''
Height: 27 1/8''
Weight: 16.3 lbs.
Overall Height: 101''
Wire: 120'' (color/Black)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  9 - E26 Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Midnight Black
1 Chain - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 9 G560283-303     5 3/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3120209-112 1  785652141485  29.7 11.5 28.2 5.574 25 0 Yes
Master Pack 3120209-112 0  10785652141482
