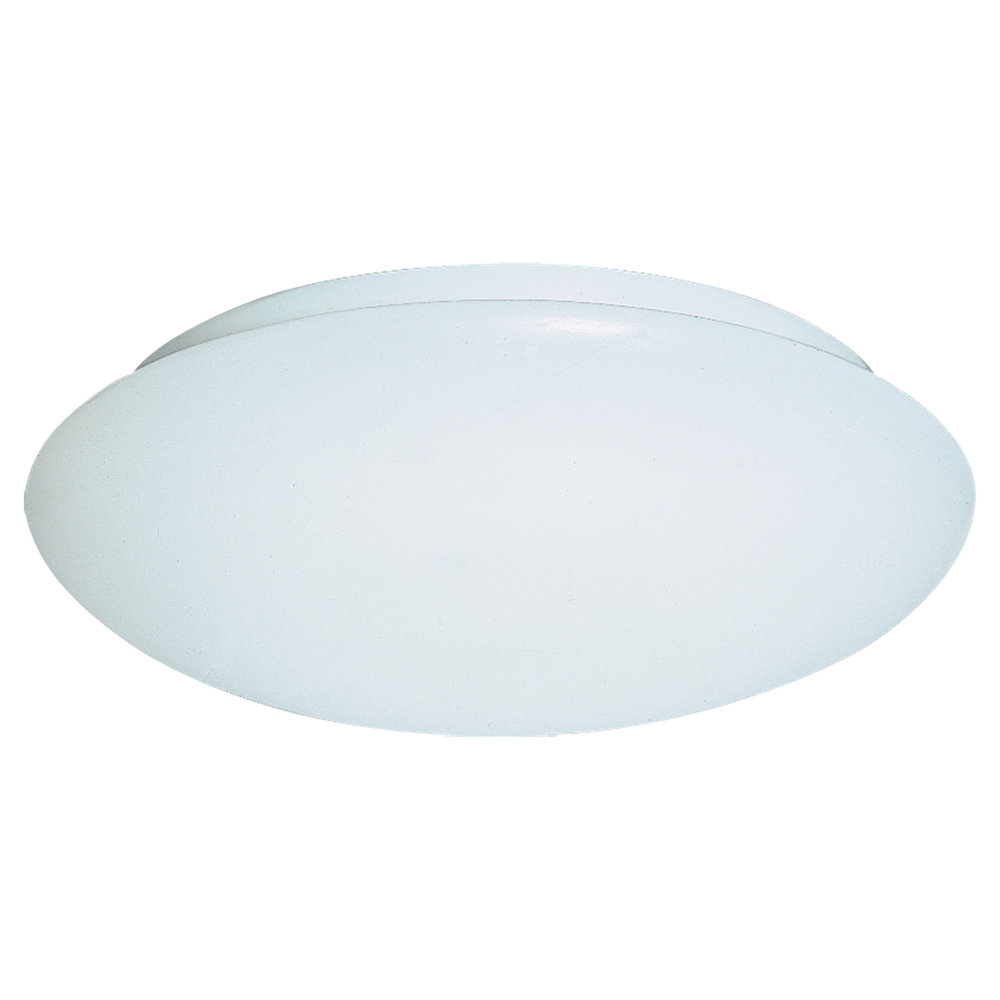

5905-15: Three Light Ceiling Flush Mount


Collection:  Holly

Three Light Compact Fluorescent Close to Ceiling Fixture in White Finish with White Acrylic Diffuser.

Shatter resistant design offer trouble free solutions. Thee compact fluorescent, close to ceiling lighting fixture in White Finish Aluminum with White Acrylic Diffuser.

UPC #:785652590559

Finish:   White (15)
Dimensions:

Diameter: 13 25/32''
Height: 3 7/16''
Wire: 6 1/2''
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulbs:
  3 - Fluorescent GX23 Tubular 13w Max. 120v - Not included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Fixture may be mounted on wall or ceiling.
  • Offers energy saving fluorescent lighting
  • Fixture is supplied with tamper proof screws
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-411)
French (F-001)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White Plastic 1       3 13 25/32
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
9747 Frosted   Glass Lens   Tubular GX23 13 13 120v 10000 900   2700 82
9757         13   120v 12500 880   2700 84
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5905-15 1  785652590559  14.25 14.25 4.25 0.499 5.2 93 Yes
Master Pack   2  10785652590556  14.25 14.25 8.5 0.999 10.5 93 Yes
NJ Pallet   108    48 40 68.5 76.111 567 No
NV Pallet   108    48 40 68.5 76.111 567 No
