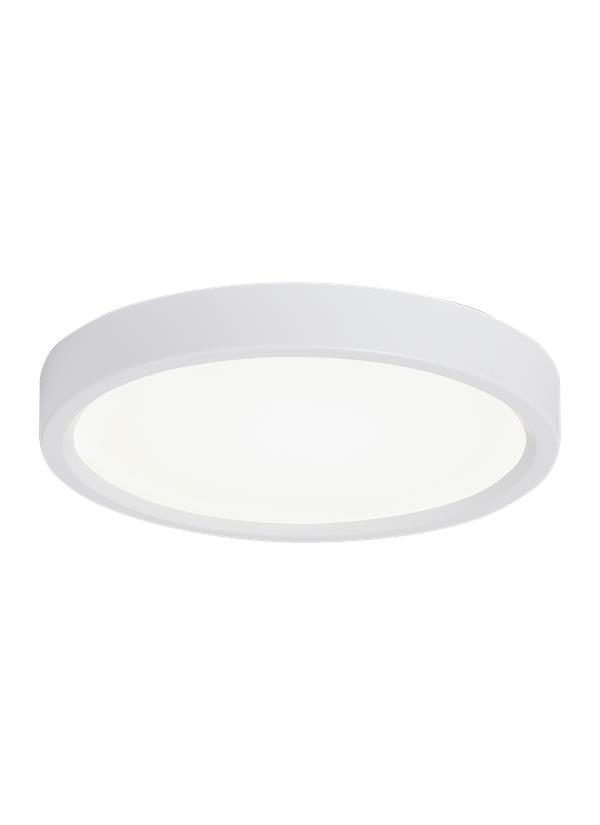

14825RD-15: Lotus - Round 5" White


Collections: Lotus (Primary)
Traverse Lotus


Featured in the decorative Traverse Lotus collection

LED

ENERGY STAR® Qualified

This fixture is classified as a directional light source

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

UPC #:785652133121

Finish:   White (15)
Dimensions:

Diameter: 5 3/8''
Height: 23/32''
Weight: 0.45 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 10
Watts Consumed: 10
Watts Rated: 10
Hours Rated: 50000
Lumens: 700
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 10w Max. 120v - included
Features:
  • Product complies with NEC 410.16 code and is closet rated.
  • This fixture is classified as a directional light source
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Housing - Aluminum - Anodized
1 Trim - Polycarbonate - White
Safety Listing:
  Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Lens Polycarbonate Clear 1       1/8 4 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 14825RD-15 1  785652133121  6 6 2 0.042 0.67 0 Yes
Master Pack 14825RD-15 20  10785652133128  12.5 12.2 10.4 0.918 13 0 Yes
