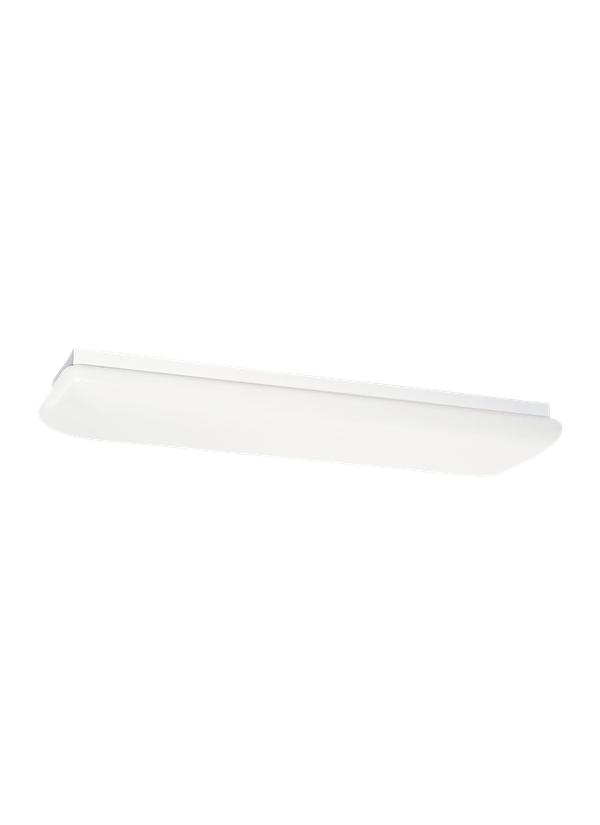

59270LE-15: Two Light Ceiling Flush Mount


Collection:  Fluorescent Ceiling

Fluorescent Two Light Cloud in White Finish with White Acrylic Diffuser

Featured in the decorative Fluorescent Ceiling collection

2 T8 Medium Bi-Pin 32 watt light bulbs

white acrylic diffuser

Offers energy saving fluorescent lighting

Meets Title 24 energy efficiency standards

UPC #:785652592720

Finish:   White (15)
Dimensions:

Length: 51 1/2"
Width: 11 1/4''
Height: 5 3/4''
Weight: 12.06 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulbs:
  2 - Fluorescent Medium Bi-Pin T8 32w Max. 120v - Not included
Features:
  • Offers energy saving fluorescent lighting
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (A-779)
English (HC-1297)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White 1
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 59270LE-15 1  785652592720  54 12 7.5 2.813 12.7 0 Yes
Master Pack 59270LE-15 0  10785652592727
NJ Pallet   29    55 44 65.25 91.38 368.3 No
NV Pallet   30    55 40 79 100.579 381 No
