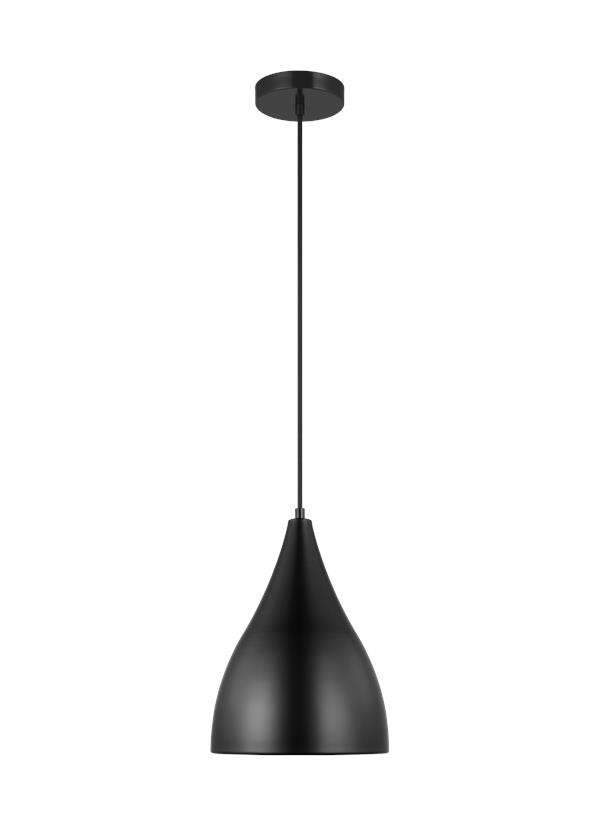

6545301EN3-112: Small Pendant

	Collection: Oden
	UPC #:785652130120
	Finish: Midnight Black (112)

Dimensions:


Diameter:	9''
Width:	9''
Height:	11 3/4''

Weight:

2.6 lbs.

Overall Height:

147''

Wire:

144'' (color/Black)

Mounting Proc.:

Screw(s)

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

This product may be mounted on a sloped ceiling
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Midnight Black

1 Fabric Cord - Fabric - Black

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (6545301)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Steel

Midnight Black

11 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1			4 7/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6545301-118	1	785652130120	15.4	11.4	11.2	1.138	4.75	0	Yes
Master Pack	6545301EN3-112	0	10785652130127
NJ Pallet		60		48	40	77	85.556	285		No
NV Pallet		60		48	40	77	85.556	285		No
