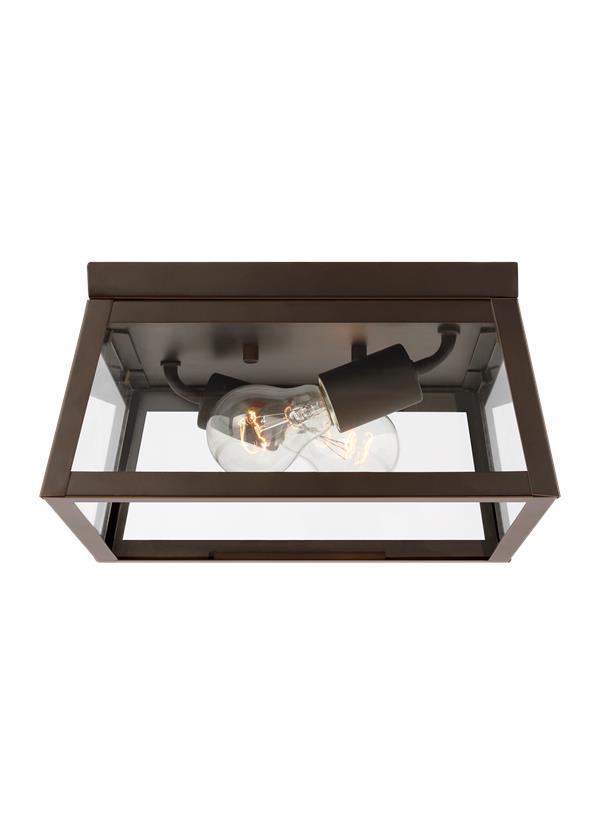

7848402EN7-71: Two Light Outdoor Flush Mount

	Collection: Founders
	Traditional elements are updated with contemporary lines with a sense of Asian-inspired styling.
	Two finish options available: Antique Bronze and Black
	Full sets of clear and white glass panels included with each fixture
	Assortment includes: small, medium, and large one-light lanterns; one-light post lantern; two-light flush mount and one-light pendant.
	Wet Rated
	UPC #:785652130830
	Finish: Antique Bronze (71)

Dimensions:


Length:	11 1/2"
Width:	11 1/2''
Height:	5 1/2''

Weight:

5.4 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

2700 °K

Bulbs:

2 - LED Medium A19 8w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Antique Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (7848402)
Trilingual (English, Spanish, and French) (7848402)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear

10 7/8

4 1/2

Panel

Glass

Smooth White

10 7/8

4 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4	9 7/8	9 7/8

Replacement Bulb Data:

Product #

Type

Base

Watts

Watts Consumed

Volts

Hours

Lumens

Temp (°K)

CRI

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7848402EN7-71	1	785652130830	13.9	16.9	8.7	1.183	6.5	0	Yes
Master Pack	7848402EN7-71	0	10785652130837
NJ Pallet		50		48	40	78	86.667	325		No
NV Pallet		50		48	40	78	86.667	325		No
