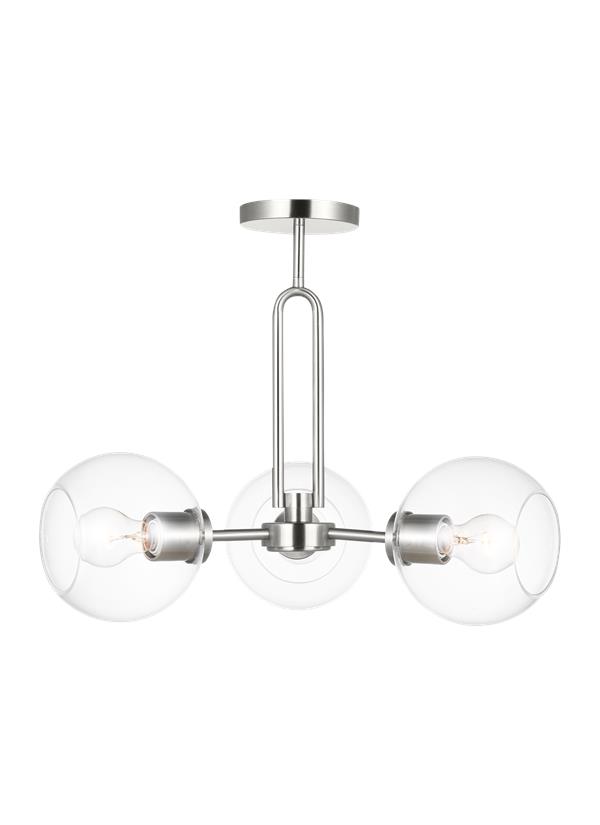

7755703EN7-962: Three Light Semi-Flush Convertible Pendant


Collection:  Codyn

UPC #:785652127991

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 22''
Width: 22''
Height: 14''
Weight: 6.5 lbs.
Height Flush: 16 3/4''
Overall Height: 57 3/8''
Wire: 72'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  3 - LED Medium A19 8w Max. 120v - included
Features:
  • This product may be mounted on a sloped ceiling
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (7755703)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear 3       6 6 3/4       4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7755703EN7-962 1  785652127991  17.5 17.5 12.7 2.251 8.45 0 Yes
Master Pack 7755703EN7-962 0  10785652127998
NJ Pallet   36    48 40 77 85.556 304.2 No
NV Pallet   36    48 40 77 85.556 304.2 No
