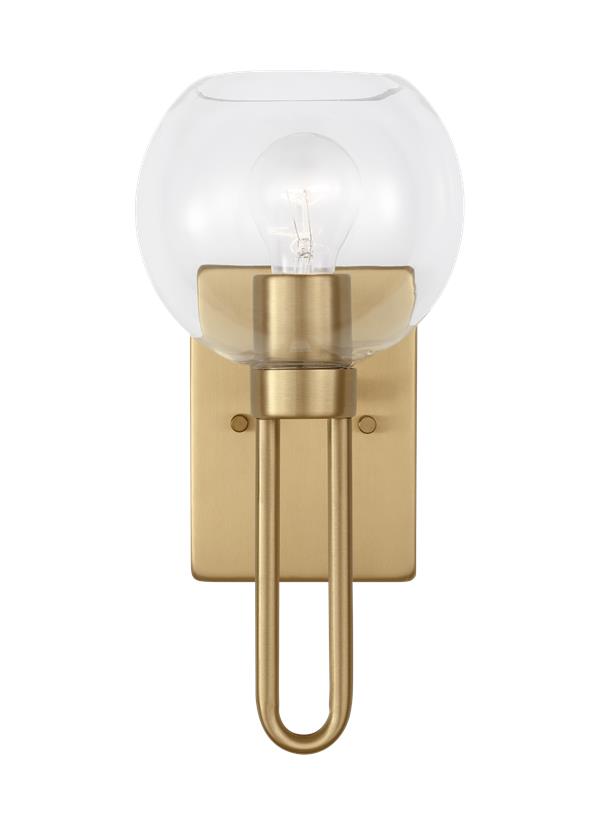

4155701EN7-848: One Light Wall / Bath Sconce

	Collection: Codyn
	UPC #:785652127830
	Finish: Satin Brass (848)

Dimensions:


Width:	6 3/4''
Height:	13 3/4''

Weight:

2.4 lbs.

Extends:

8 1/2''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

2700 °K

Bulbs:

1 - LED Medium A19 8w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (CODYN_WALL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

6 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7	5	3/4		7 1/4	6 1/2

Replacement Bulb Data:

Product #

Type

Base

Watts

Watts Consumed

Volts

Hours

Lumens

Temp (°K)

CRI

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4155701EN7-848	1	785652127830	15.1	10.2	9.2	0.82	3.2	0	Yes
Master Pack	4155701EN7-848	0	10785652127837
NJ Pallet		84		48	40	77	85.556	269		No
NV Pallet		84		48	40	77	85.556	269		No
