Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

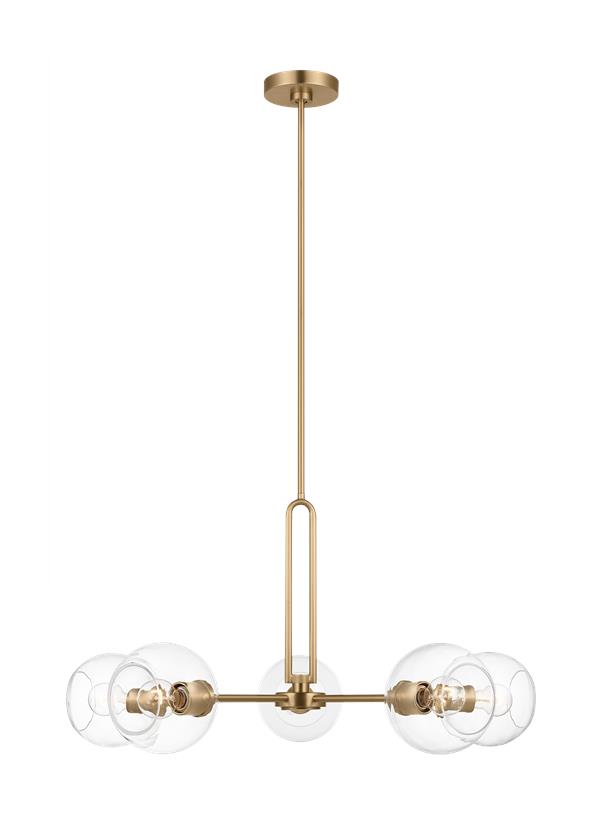

3255705EN7-848: Five Light Large Chandelier


Collection:  Codyn

UPC #:785652127809

Finish:   Satin Brass (848)
Dimensions:

Diameter: 34''
Width: 34''
Height: 20 3/8''
Weight: 9.25 lbs.
Overall Height: 60 3/4''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  5 - LED Medium A19 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (3155705 3255705)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear 5       6 6 3/4       4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3255705EN7-848 1  785652127809  27.5 26.2 10 4.17 12.5 0 Yes
Master Pack 3255705EN7-848 0  10785652127806
NJ Pallet   13    48 40 72 80 156 No
NV Pallet   13    48 40 72 80 156 No
