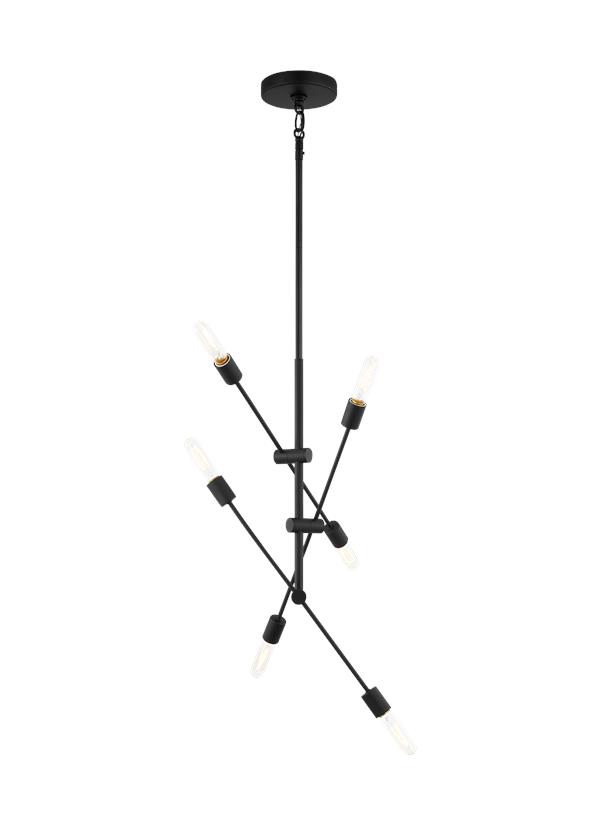

3100506EN7-112: Six Light Medium Chandelier


Collection:  Axis

Adjustable pivot points allow the three (3) arms to rotate 350° around the center axis by loosening and tightening the knurled hubs.

UPC #:785652127700

Finish:   Midnight Black (112)
Dimensions:

Diameter: 35 1/4''
Width: 35 1/4''
Height: 41''
Overall Height: 76 1/4''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 5
Lumens: 430
Bulb Temp: 2700 °K
Bulbs:
  6 - LED Medium T10 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Midnight Black
3 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (AXIS_CHAND)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3100506EN7-112 1  785652127700  38.4 8.3 6.3 1.162 6.9 0 Yes
Master Pack 3100506EN7-112 0  10785652127707
NJ Pallet   66    48 40 77 85.556 455.4 No
NV Pallet   66    48 40 77 85.556 455.4 No
