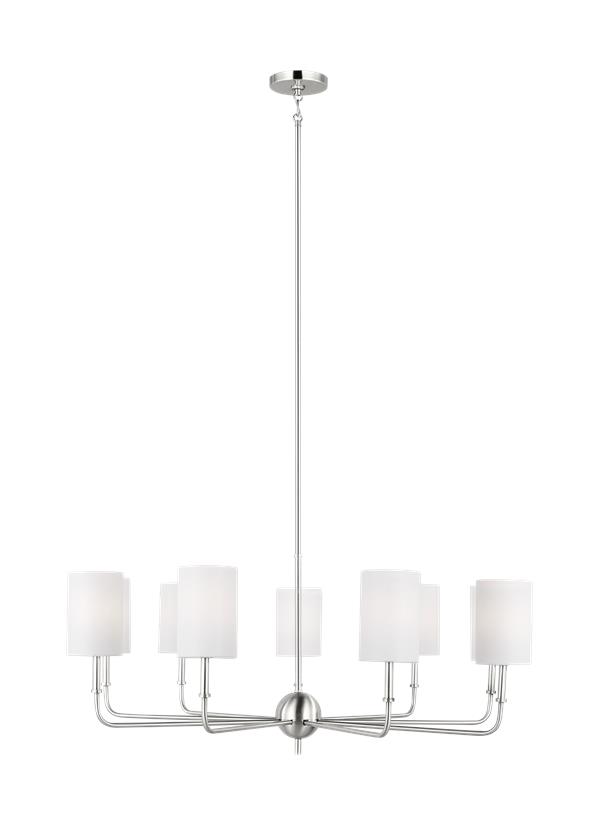

3109309EN-962: Nine Light Chandelier


Collection:  Foxdale

UPC #:785652128226

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 36''
Width: 36''
Height: 14 7/8''
Overall Height: 60 3/4''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  9 - LED Candelabra B10 Torpedo 3.5w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (FOXDALE_CHAND)
Trilingual (English, Spanish, and French) (310930 3609306)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Fabric White Linen 9       6 4       4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3109309EN-962 1  785652128226  36 14.9 8.4 2.608 10.2 0 Yes
Master Pack 3109309EN-962 0  10785652128223
NJ Pallet   27    48 40 76 84.444 275 No
NV Pallet   27    48 40 76 84.444 275 No
