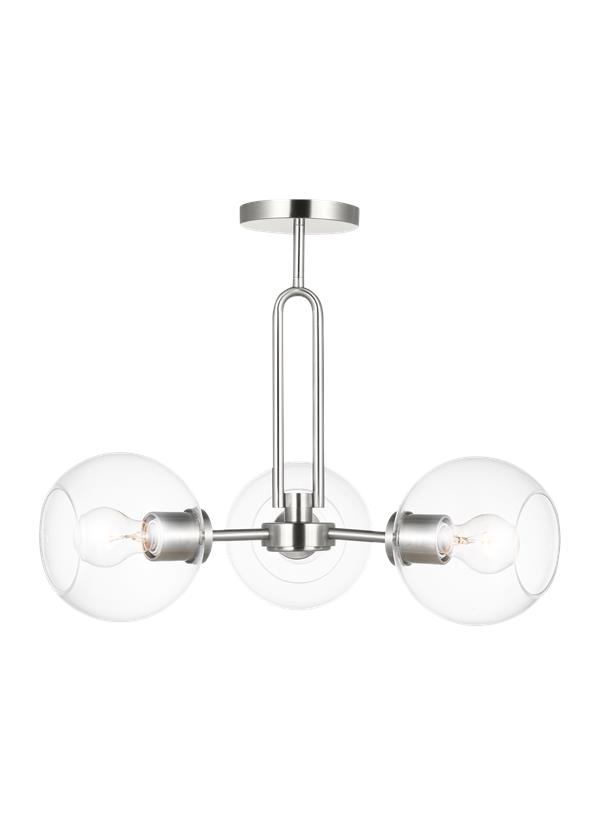

7755703-962: Three Light Semi-Flush Convertible Pendant

	Collection: Codyn
	UPC #:785652123429
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	22''
Width:	22''
Height:	14''

Weight:

6.5 lbs.

Height Flush:

16 3/4''

Overall Height:

57 3/8''

Wire:

72'' (color/Clear Silver)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Bulbs:

3 - Medium A19 75w Max. 120v - Not included

Features:

This product may be mounted on a sloped ceiling
Fixture is dual mount and may be installed semi-flush or as a pendant.
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (7755703)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

6 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7755703-112	1	785652123429	17.5	17.5	12.7	2.251	8.45	0	Yes
Master Pack	7755703-962	0	10785652123426
NJ Pallet		36		48	40	77	85.556	304.2		No
NV Pallet		36		48	40	77	85.556	304.2		No
