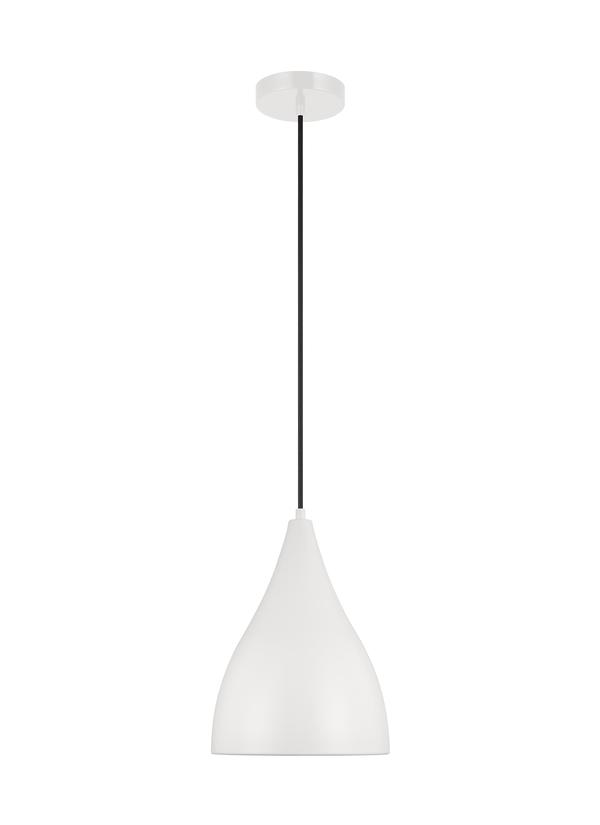

6545301-115: Small Pendant


Collection:  Oden

UPC #:785652123726

Finish:   Matte White (115)
Dimensions:

Diameter: 9''
Width: 9''
Height: 11 3/4''
Weight: 2.6 lbs.
Overall Height: 147''
Wire: 144'' (color/Black)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • This product may be mounted on a sloped ceiling
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Matte White
1 Fabric Cord - Fabric - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6545301)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Matte White 1       11 3/4 9
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6545301-118 1  785652123726  15.4 11.4 11.2 1.138 4.75 0 Yes
Master Pack 6545301-115 0  10785652123723
NJ Pallet   60    48 40 77 85.556 285 No
NV Pallet   60    48 40 77 85.556 285 No
