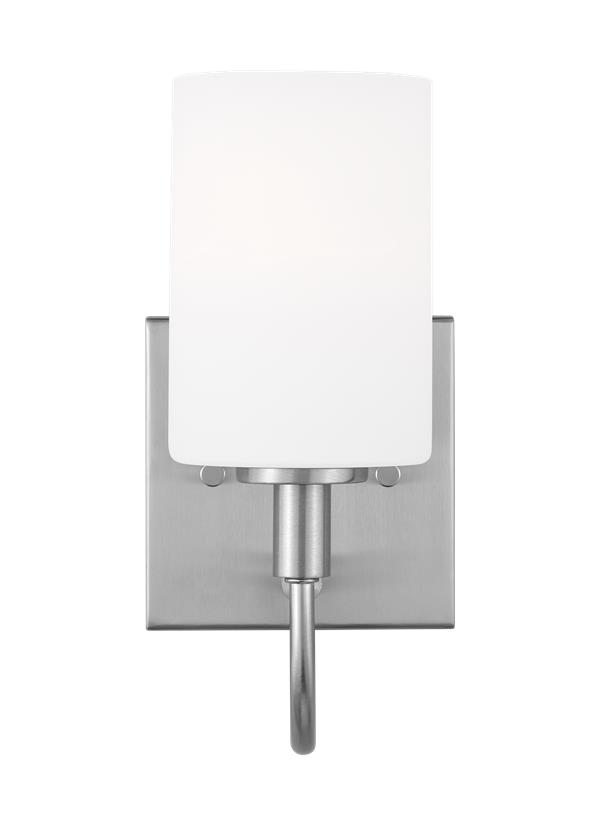

4157101-962: One Light Wall / Bath Sconce

	Collection: Oak Moore
	UPC #:785652124211
	Finish: Brushed Nickel (962)

Dimensions:


Width:	4 7/8''
Height:	10''

Weight:

1.47 lbs.

Extends:

6 1/2''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (OAKMOORE_WALL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

5 3/4

3 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	4 7/8	4 7/8	3/4		6 1/8	3 7/8

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4157101-05	1	785652124211	10.4	8.2	6.8	0.336	1.9	0	Yes
Master Pack	4157101-962	4	10785652124218	17.1	14	11.6	1.607	9.05	0	Yes
NJ Pallet		180		48	40	77	85.556	342		No
NV Pallet		180		48	40	77	85.556	342		No
