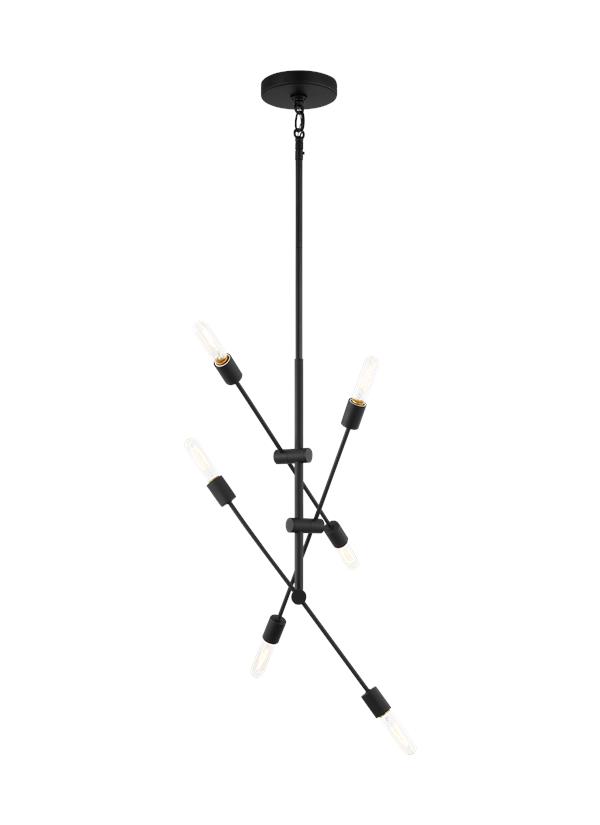

3100506-112: Six Light Medium Chandelier


Collection:  Axis

Adjustable pivot points allow the three (3) arms to rotate 350° around the center axis by loosening and tightening the knurled hubs.

UPC #:785652124600

Finish:   Midnight Black (112)
Dimensions:

Diameter: 35 1/4''
Width: 35 1/4''
Height: 41''
Overall Height: 76 1/4''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  6 - Medium T10 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
3 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (AXIS_CHAND)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3200506-112 1  785652124600  38.4 8.3 6.3 1.162 6.9 0 Yes
Master Pack 3100506-112 0  10785652124607
NJ Pallet   66    48 40 77 85.556 455.4 No
NV Pallet   66    48 40 77 85.556 455.4 No
