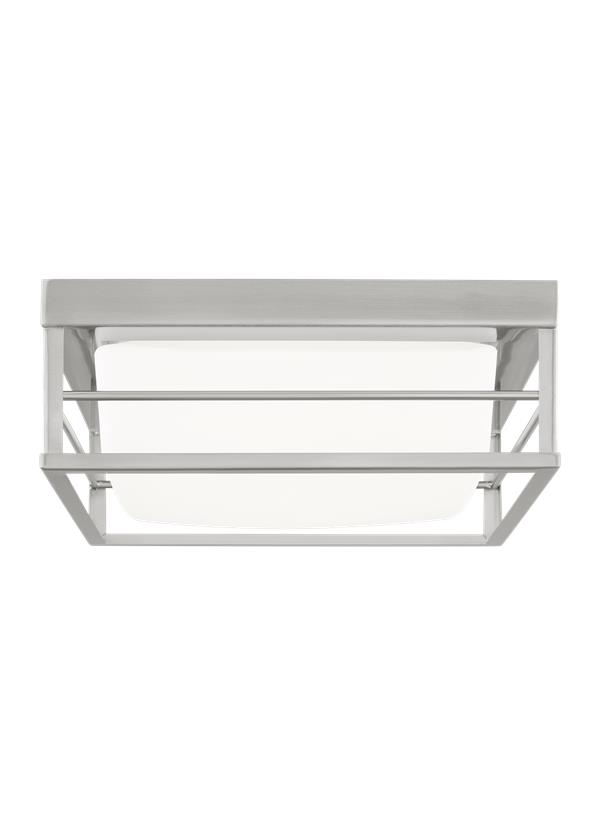

7529693S-962: Small LED Ceiling Flush Mount


Collection:  Dearborn

UPC #:785652124716

Finish:   Brushed Nickel (962)
Dimensions:

Length: 10"
Width: 10''
Height: 3 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 20
Watts Consumed: 20
Watts Rated: 20
Hours Rated: 50000
Lumens: 1150
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 20w Max. 120v - included
Features:
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (DEARBORN_FLUSH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched Opal 1   8 8 3 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8  10  10
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7629693S-112 1  785652124716  13.5 12.8 7.8 0.78 5.5 0 Yes
Master Pack 7529693S-962 0  10785652124713
