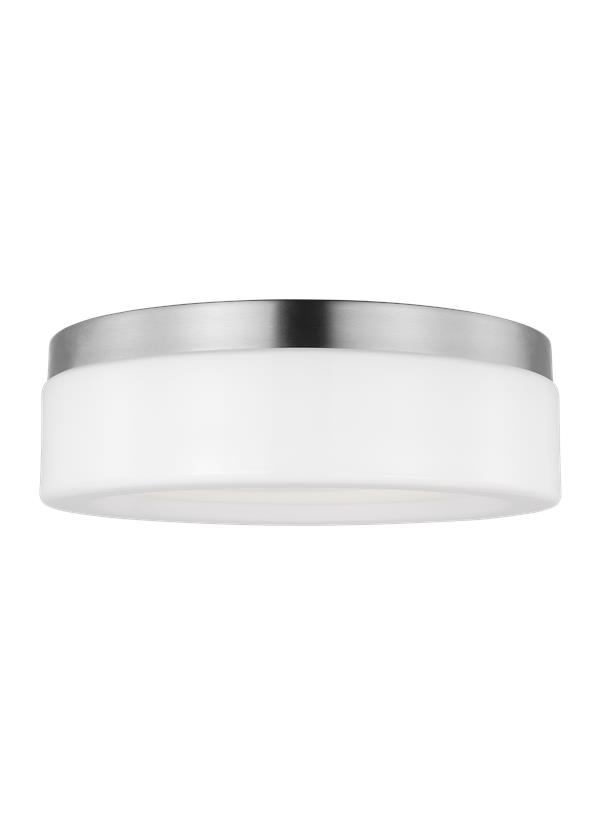

7569093S-962: Medium Ceiling Flush Mount


Collection:  Rhett

UPC #:785652124839

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 12''
Width: 12''
Height: 3 3/4''
Weight: 2.8 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 15
Watts Consumed: 15
Watts Rated: 15
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Array 15w 120v - included
Features:
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (7569093S)
Trilingual (English, Spanish, and French) (7569093s)
Trilingual (English, Spanish, and French) (RHETT_FLUSH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1       3 5/8 12
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      11 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7569093S-848 1  785652124839  14.5 15 7 0.881 5.3 0 Yes
Master Pack 7569093S-962 0  10785652124836
