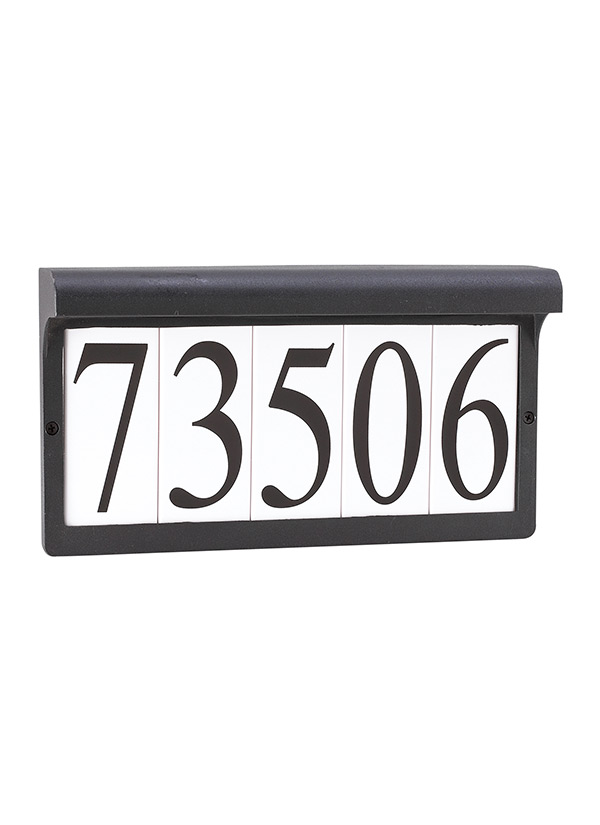

9600-12: Address Light

	Collection: Address Light
	Black Powdercoat Aluminum Address Light Fixture. Note: Number Tiles for Address Light sold separately.
	Featured in the decorative Address Light collection
	2 T3 1/4 Wedge 5 watt light bulbs and 2 T3 1/4 Wedge 5 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Powder coat added to the finish to protect against aging.
	ETL listed for wet locations
	UPC #:785652960017
	Finish: Black (12)

Dimensions:


Width:	12 3/8''
Height:	6 13/16''

Weight:

0.89 lbs.

Extends:

2 1/4''

Bulbs:

2 - Xenon Wedge T3 1/4 5w Max. 16v - included

Features:

Powder coat added to the finish to protect against aging.

Material List:

1 Body - Die Cast Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-221)

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
9732	Clear Glass Lens	Xenon	T3 1/4	Wedge	5	4.2	12v	8000	33	2550	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	9600-12	1	785652960017	12.5	7.5	2.75	0.149	1.15	0	Yes
Master Pack		3	10785652960014	13.25	9.25	8.25	0.585	4.2	0	Yes
NJ Pallet		360		48	40	72	80	504		No
NV Pallet		360		48	40	72	80	504		No
