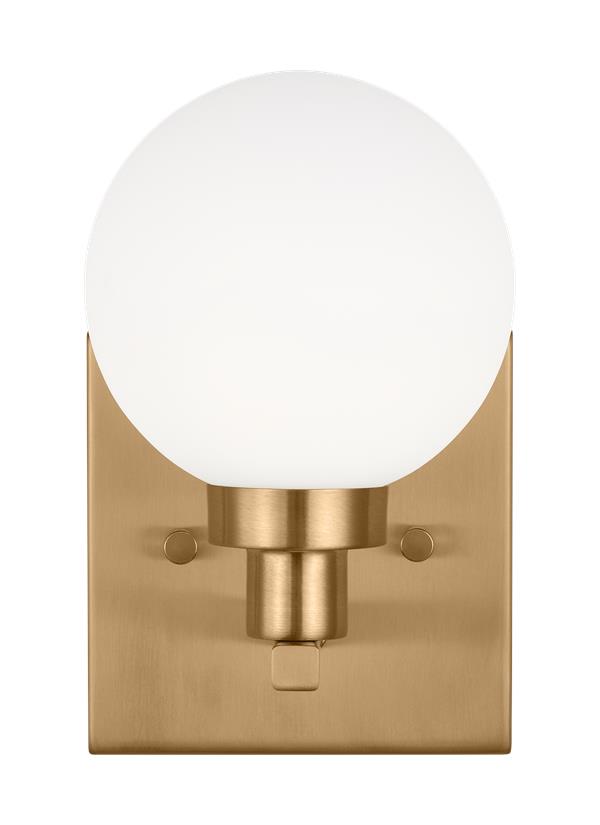

4161601-848: One Light Wall / Bath Sconce

	Collection: Clybourn
	UPC #:785652125102
	Finish: Satin Brass (848)

Dimensions:


Width:	5''
Height:	7 7/8''

Weight:

1.2 lbs.

Extends:

6 7/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Halogen G9 T4 40w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (CLYBOURN_WALL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched Opal

4 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5	5	3/4		5 3/8	2 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4461603-05	1	785652125102	11.2	7.7	7.6	0.379	1.65	0	Yes
Master Pack	4161601-848	4	10785652125109	15.3	15.8	12.3	1.721	8.25	0	Yes
NJ Pallet		144		48	40	68	75.556	1188		No
NV Pallet		144		48	40	68	75.556	1188		No
