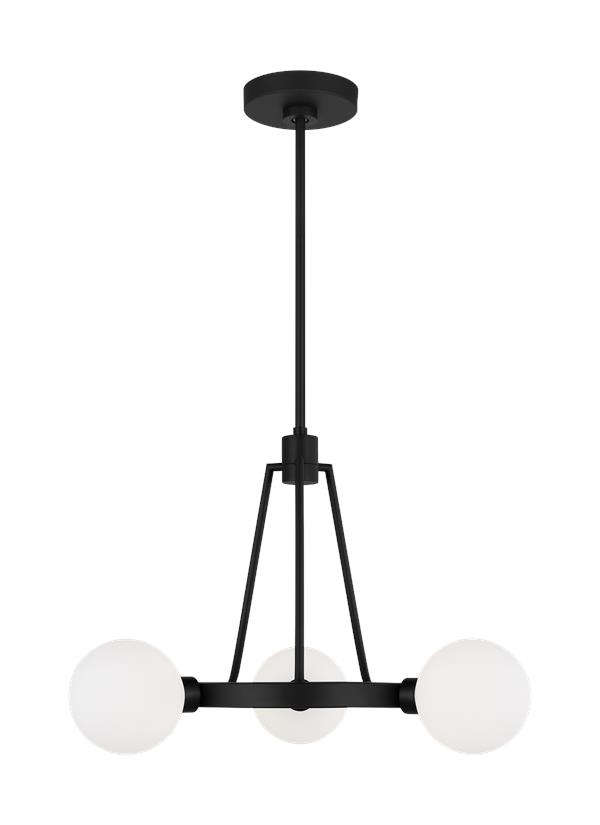

3161603-112: Three Light Chandelier


Collection:  Clybourn

UPC #:785652125027

Finish:   Midnight Black (112)
Dimensions:

Diameter: 21''
Width: 21''
Height: 14''
Weight: 6.1 lbs.
Overall Height: 57 3/8''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  3 - Halogen G9 T4 40w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
3 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (3161603 3161606)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched Opal 3       4 3/4 4 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3161606-112 1  785652125027  15.7 15.2 15.2 2.099 8 0 Yes
Master Pack 3161603-112 0  10785652125024
NJ Pallet   24    48 40 77 85.556 192 No
NV Pallet   24    48 40 77 85.556 192 No
