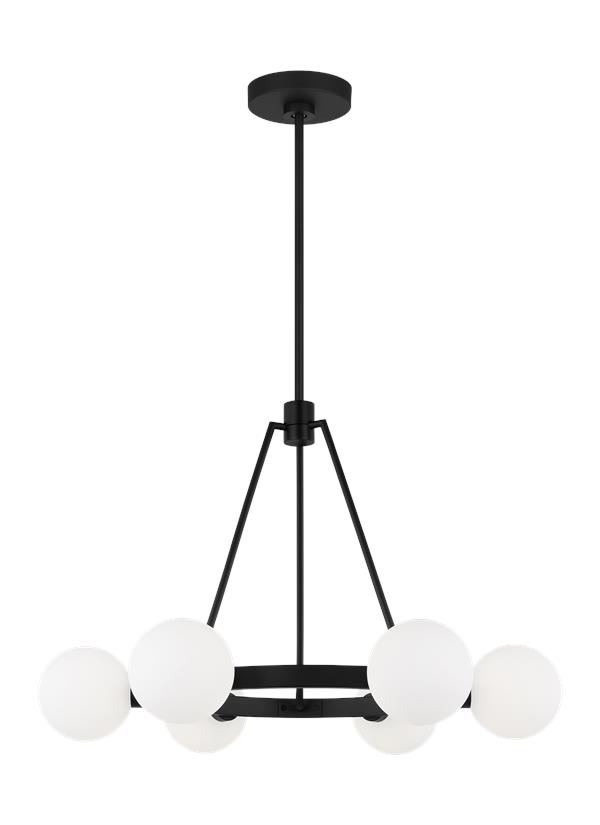

3161606-112: Six Light Chandelier


Collection:  Clybourn

UPC #:785652125041

Finish:   Midnight Black (112)
Dimensions:

Diameter: 26''
Width: 26''
Height: 17 1/2''
Weight: 8.8 lbs.
Overall Height: 60 7/8''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  6 - Halogen G9 T4 40w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
3 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (3161603 3161606)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched Opal 6       4 3/4 4 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3161606-112 1  785652125041  20.9 19.4 19.1 4.482 11.5 0 Yes
Master Pack 3161606-112 0  10785652125048
NJ Pallet   12    48 40 77 85.556 138.6 No
NV Pallet   12    48 40 77 85.556 138.6 No
