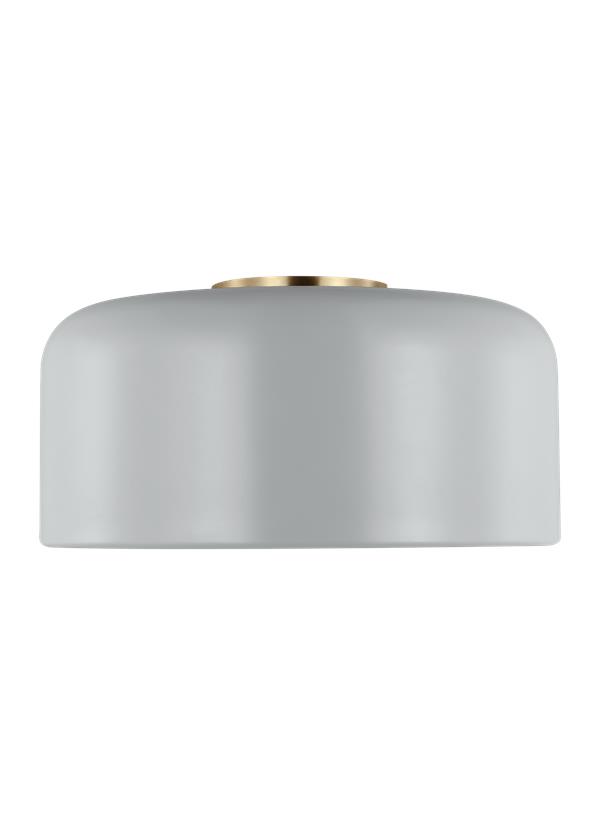

7605401-118: Medium Ceiling Flush Mount


Collection:  Malone

UPC #:785652124921

Finish:   Matte Grey (118)
Dimensions:

Diameter: 13 3/4''
Width: 13 3/4''
Height: 7''
Weight: 3.08 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Matte Grey
1 Accents - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (MALONE_FLUSH)
Trilingual (English, Spanish, and French) (7505401 7605401 7705401)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Matte Grey 1       6 1/4 13 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7605401-118 1  785652124921  16 15.5 8.4 1.206 4.9 0 Yes
Master Pack 7605401-118 0  10785652124928
NJ Pallet   56    48 40 77 85.556 274 No
NV Pallet   56    48 40 77 85.556 274 No
