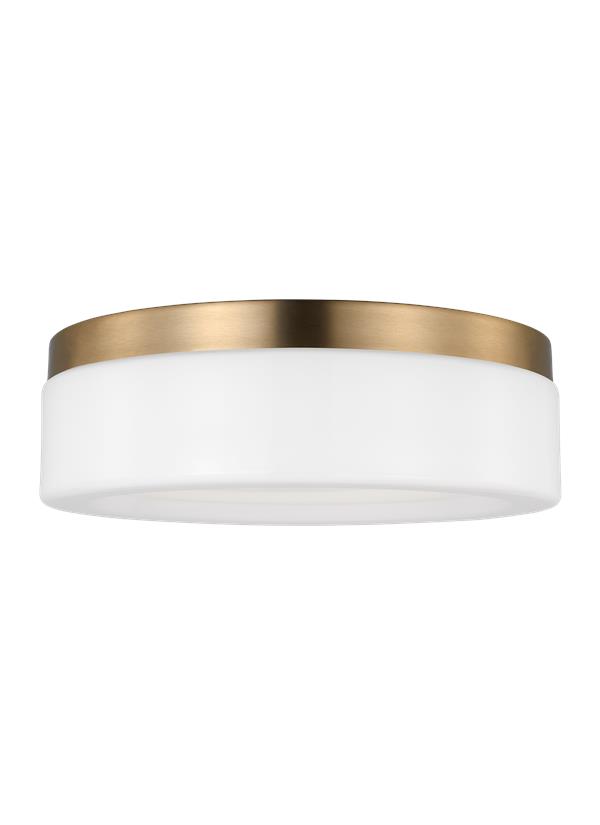

7569093S-848: Medium Ceiling Flush Mount

	Collection: Rhett
	UPC #:785652124822
	Finish: Satin Brass (848)

Dimensions:


Diameter:	12''
Width:	12''
Height:	3 3/4''

Weight:

2.8 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Type:

Array

Bulb Base:

Integrated

Volts:

120

Watts:

Watts Consumed:

Watts Rated:

Hours Rated:

50000

Lumens:

1000

Bulb Temp:

3000 °K

CRI:

Bulbs:

1 - LED Integrated Array 15w 120v - included

Features:

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
Meets Title 24 energy efficiency standards
Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (7569093S)
Trilingual (English, Spanish, and French) (7569093s)
Trilingual (English, Spanish, and French) (RHETT_FLUSH)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

3 5/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1			11 3/4

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7569093S-848	1	785652124822					1	0	Yes
Master Pack	7569093S-848	0	10785652124829
NJ Pallet		78		48	40	74	82.222	371		No
NV Pallet		78		48	40	74	82.222	371		No
