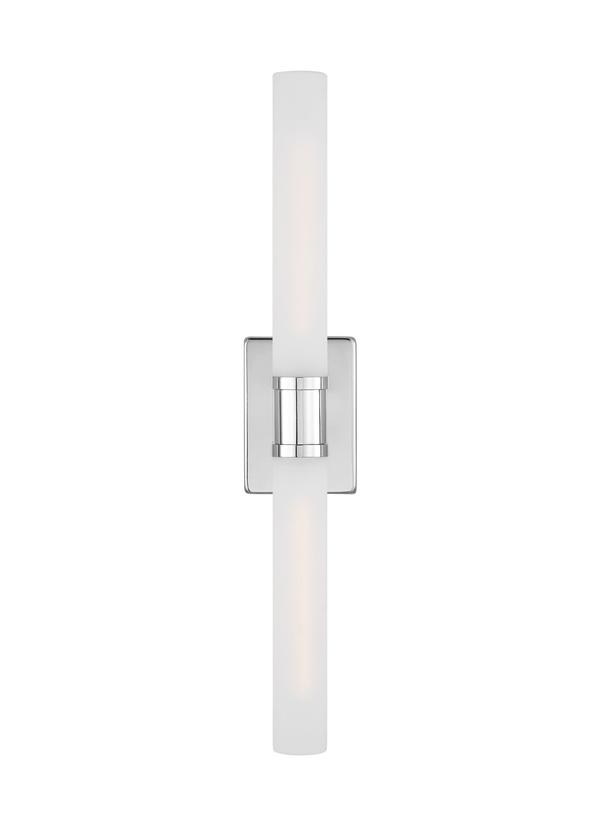

4665002-05: Large Two Light Wall / Bath

	Collection: Keaton
	UPC #:785652126239
	Finish: Chrome (05)

Dimensions:


Width:	5''
Height:	30''

Weight:

3.3 lbs.

Extends:

3 5/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Screw(s)

Connection:

Mounted To Box

Bulbs:

2 - Medium T10 60w Max. 120v - Not included

Features:

Meets American with Disabilities Act standard extension requirements
Easily converts to LED with optional replacement lamps
Fixture may be mounted horizontal or vertical
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Chrome

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (KEATON_WALL)
Trilingual (English, Spanish, and French) (4465002 4565002 4665002)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

2 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7	5	3/4		15	2 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4465002-112	1	785652126239	16.9	11.8	5.8	0.669	4.05	0	Yes
Master Pack	4665002-05	0	10785652126236
NJ Pallet		96		48	40	77	85.556	388.8		No
NV Pallet		96		48	40	77	85.556	388.8		No
